VARSine® – Static Reactive Power Generator
VARSine® is a static reactive power generator (SVG) designed to compensate for reactive energy consumed or generated in real-time by inductive or capacitive loads. It's the ideal solution for power factor correction in applications where the load varies rapidly (such as resistance welding, arc furnaces, refrigeration or compressed air compressors, etc.) or in networks heavily polluted by harmonics. It is designed with state-of-the-art technology based on high-performance IGBTs under a 3-level topology:
Standards:
Certifications

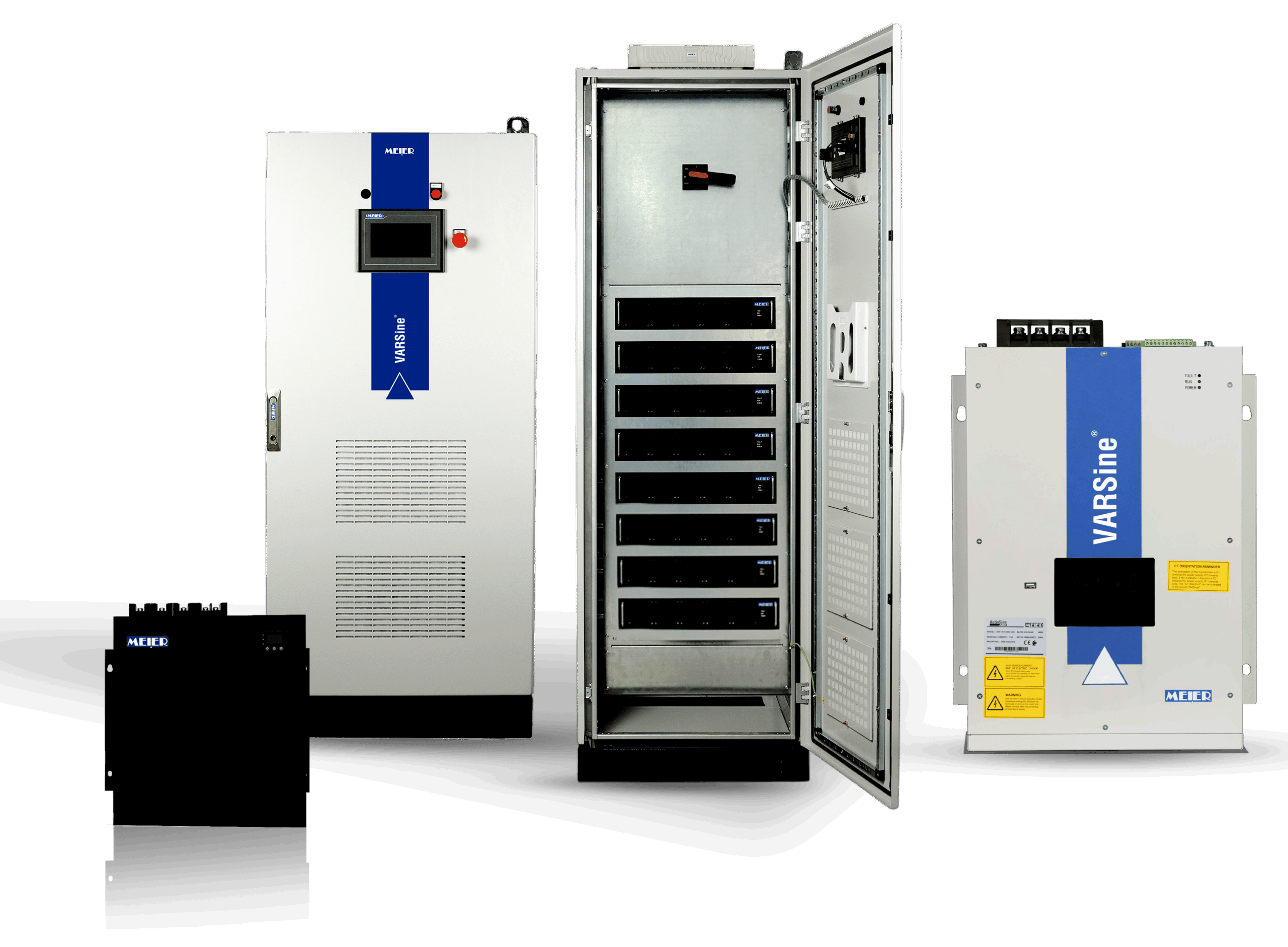

The VARSine® Series Static Reactive Power Compensator operates on a three-level topology circuit. In addition to improving power factor, it provides energy quality solutions such as harmonic elimination and load balancing. It’s available in three versions: a wall-mounted enclosure version, ranging from 20kVAR to 100kVAR, a rack-mountable version for installation in standard 19” cabinets, ranging from 20kVAR to 100kVAR, and a cabinet version, ranging from 100kVAR to 400kVAR.
Its modular design allows users to easily achieve the desired reactive power by connecting up to 20 modules in parallel.
Wall-mounted AHF
Rack-mounted AHF

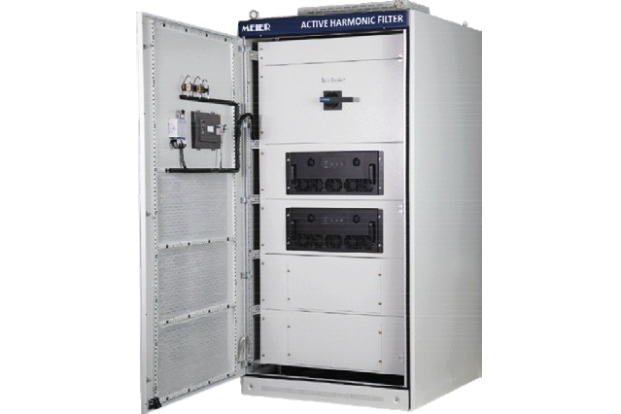

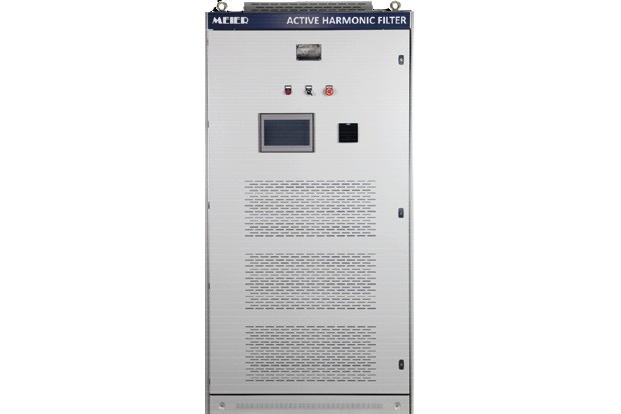

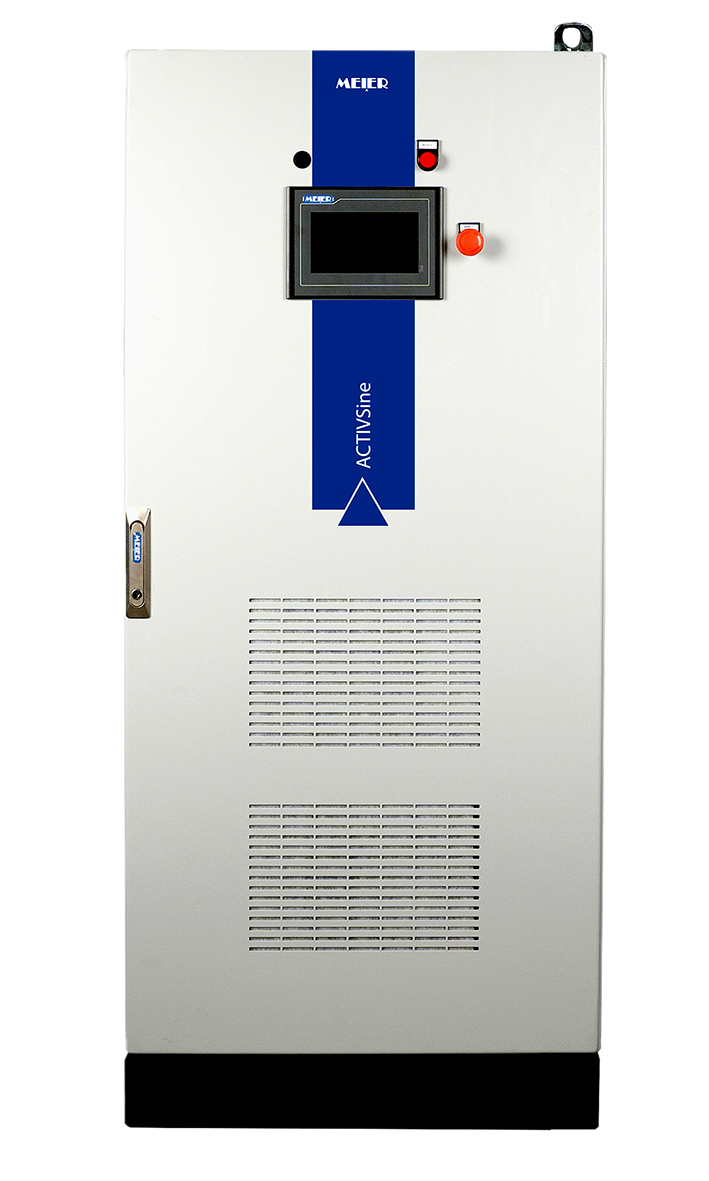

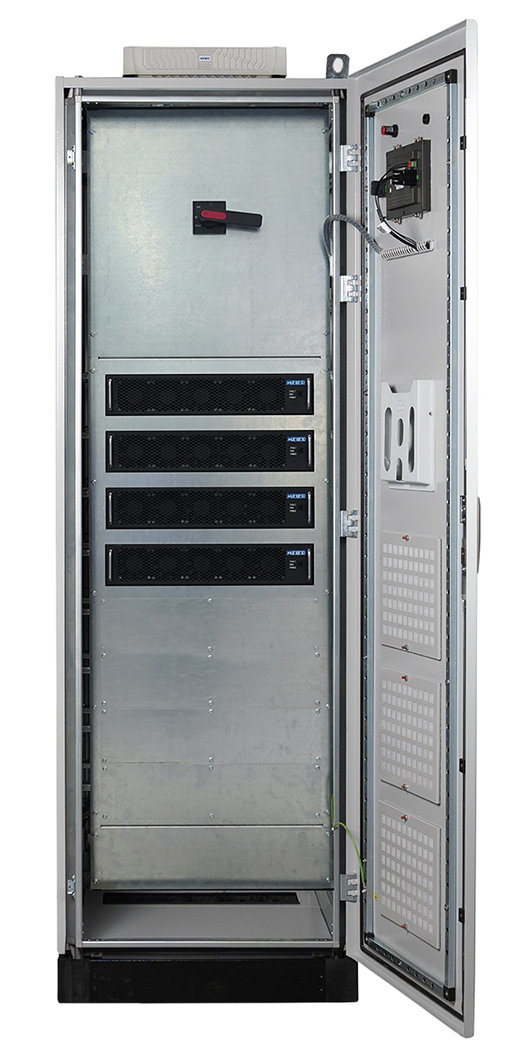

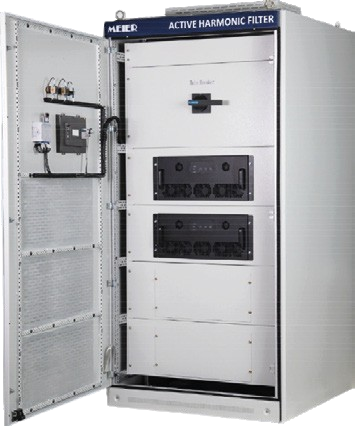

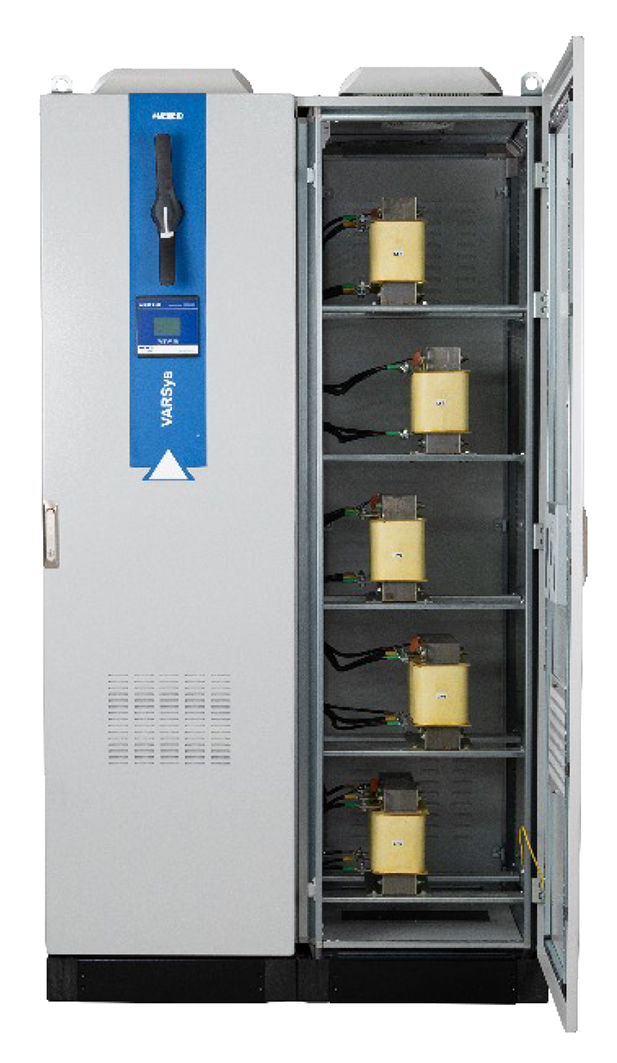

Fixed AHF cabinets
Typical applications
Safety Features
Data and Technical Specifications:
| Wall-mounted / 400V | Floor-mounted / 400V | Floor-mounted / 690V | |
|---|---|---|---|
| Network voltage range | -20%~+20% | -20%~+20% | -20%~+10% |
| Nominale power (kVAR) | 20-35-50-75-100-150 | 75-150-225-300-375-400 | 75-150-225-300-375-400 |
| Frequency | 50/60Hz (-10%~+10%) | ||
| Power factor correction range | Adjustable from -1 to 1 | ||
| Efficiency | >97%. | ||
| Configuration of the CT in loop | Closed or open (open loop is recommended for parallel operation) | ||
| Overall response time | <10ms | ||
| Network type | 3P3W, 3P4W | ||
| Overload capacity | 110% – Continuous operation, 120% – 1 minute | ||
| Circuit topology | Three-level topology | ||
| Switching frequency | 20 kHz – Reaction time: Approximately 50 ps | ||
| Modules | Maximum of 20 units can be combined | ||
| Redundancy Configuration | Master/Master or Master/Slave | ||
| Typical power losses | <2.5% (depending on the load) | ||
| Harmonic filtering | Available (from the 2nd to the 25th harmonic order) | ||
| Load balancing | Available (three-phase networks with 3P4W neutral) | ||
| Display | 1.8/4.3/7 inches HMI | ||
| Communication ports | RS485 Modbus (RTU) | ||
| Noise level | <69 dB (en fonction de la charge et du modèle){{{wpml_tag_136}}} {{{wpml_tag_137}}} {{{wpml_tag_138}}} {{{wpml_tag_139}}}Utilisation en altitude{{{wpml_tag_140}}} {{{wpml_tag_141}}}>2000m | ||
| Temperature |
Operating temperature: -35°C to 55°C, reduced use above 55°C Storage temperature: -45°C to 70°C | ||
| Humidity | 5% to 95% RH, non-condensing | ||
| Protection class | IP20 | ||
| Design/Approvals | EN 62477-1(2012), EN 61439-1 (2011) | ||
| EMC | EN/IEC 61000-6-4, Class A | ||
| Certification | CE, Cmim | ||
