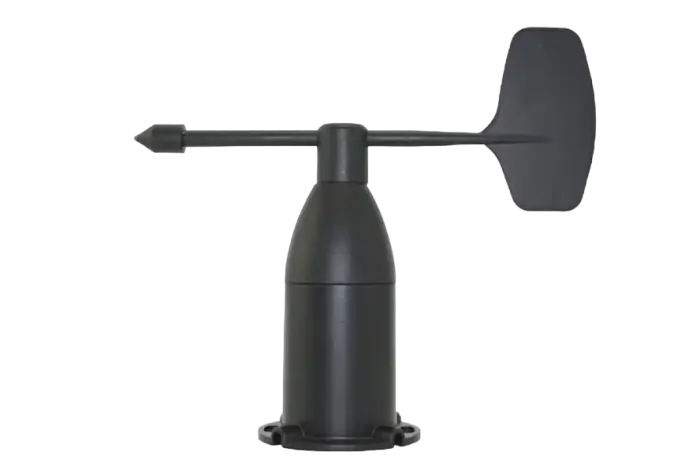

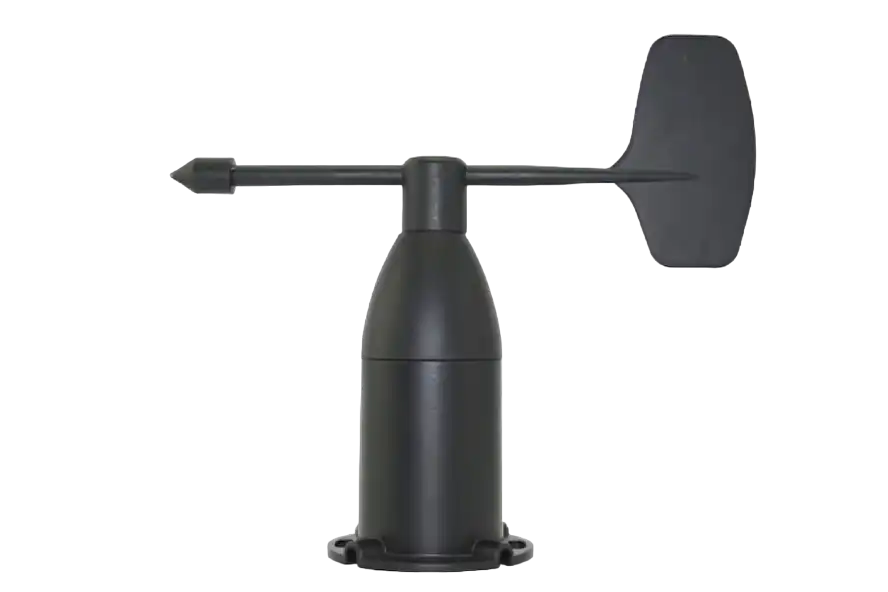

CDVM45 - Wind Direction Sensor

CDVM45
Wind Direction Sensor

Wind angle and wind direction measurement sensor, with high accuracy and fast response time

  • Measurement Range 0~360°
  • Accuracy +/-1°
  • Resolution 0.1°
  • Start wind speed ≤0.5m/s
  • Maximum turning radius 100mm
  • Working Temperature: -30°C~70°C
  • Working Humidity: ≤100% RH
  • RS485 (standard Modbus-RTU protocol)
  • Material: Aluminum Alloy
  • Power supply voltage : 5 to 24V DC
  • Cable specification: 2 meter 4-wire system (RS485)
  • Protection degree : IP65
