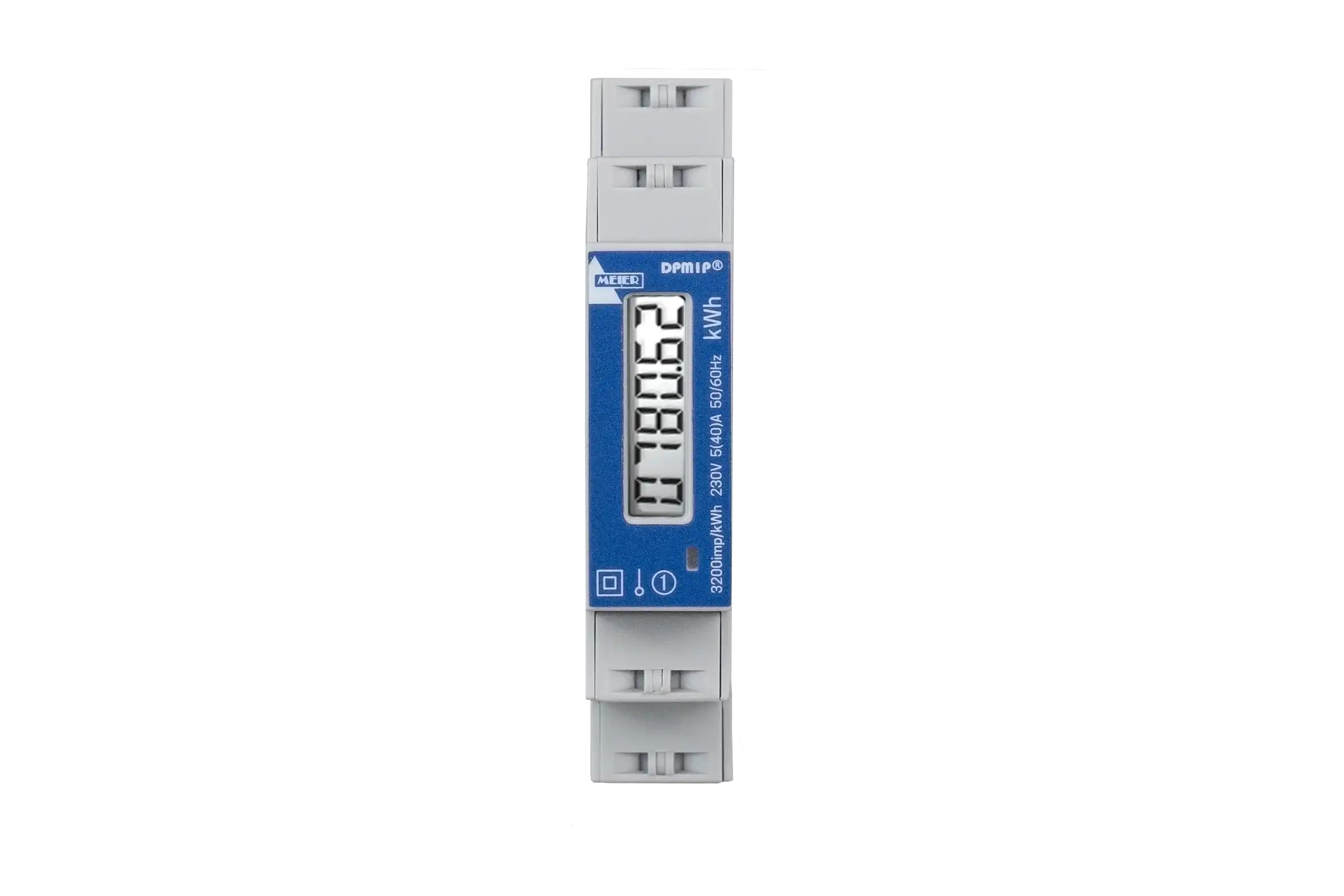

DPM-1P
Electrical Measurement Uni

The DPM-1P electrical measurement units, designed for DIN rail mounting, are engineered and manufactured to accommodate all electricity consumption scenarios.

  • Direct measurement up to 40A
  • Bi-directional energy measurement
  • Accuracy: Class 1 according to IEC 62053-21
  • LCD display mode
  • RS485 interface, Modbus-RTU Protocol
  • Pulse output
Standards:
  • IEC 62053-21
Certifications

Description

The DPM-1P DIN rail-mounted electrical measuring units are designed and manufactured to accommodate all electricity consumption scenarios by adopting an advanced energy measurement method (IC) and utilizing advanced digital sampling processes and SMT technology. They are designed with a modular structure, have a compact size, and offer convenient installation and reliable operation.

The DPM-1P electrical measuring unit is designed for single-phase measurement in single-phase networks. It allows direct current measurement up to 40A and features a pulse output for energy measurement and an RS485 – Modbus communication port.

Measurement

  • Voltage
  • Current
  • Energy bidirectional +/- kWh
  • Power factor
  • Frequency

Applications

  • Sub-metering

  • Energy management

Technical characteristics

Nominal voltage

  • 230V

Frequency

  • 45Hz~65Hz

Voltage range

  • 0.8Un~1.2Un

Startup current

  • Direct input: 0.004lb

Current measurement inputs

  • 5 (40) A

Energy pulse

  • 1 output, Pulse width 80 (+/-20%)

Digital input

  • Active digital input, Input range 0~220V AC. >150V AC closed. <70V AC open

RTC error

  • <= 0.5s/day

Communication (Modbus-RTU)

  • RS485, Modbus-RTU, 2 cables, Up to 9600bps

Width

  • 18mm (1 module)

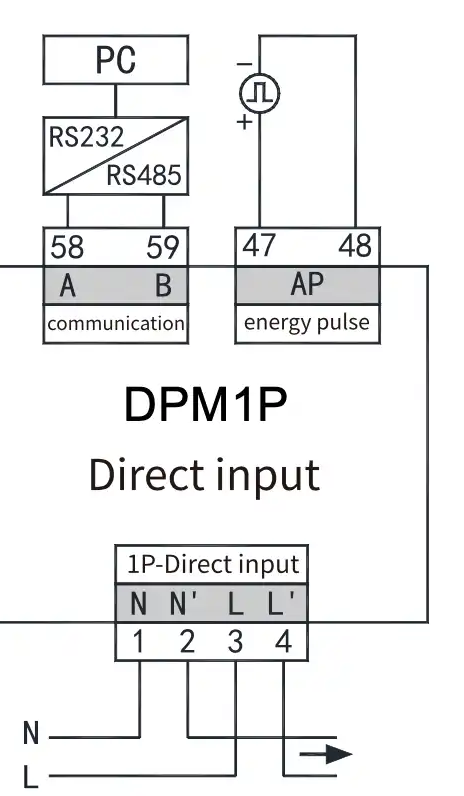

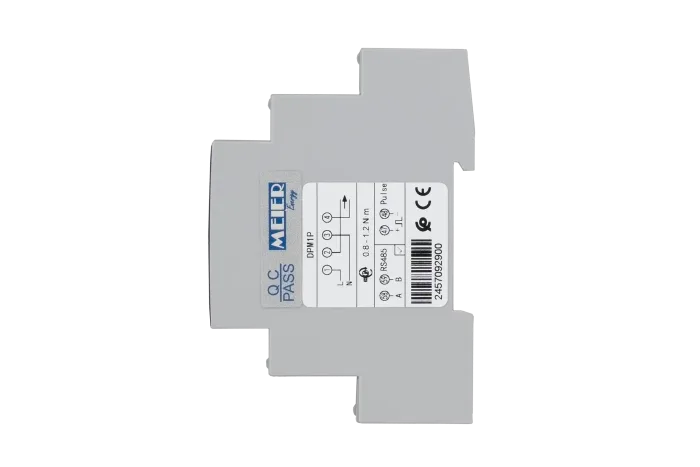

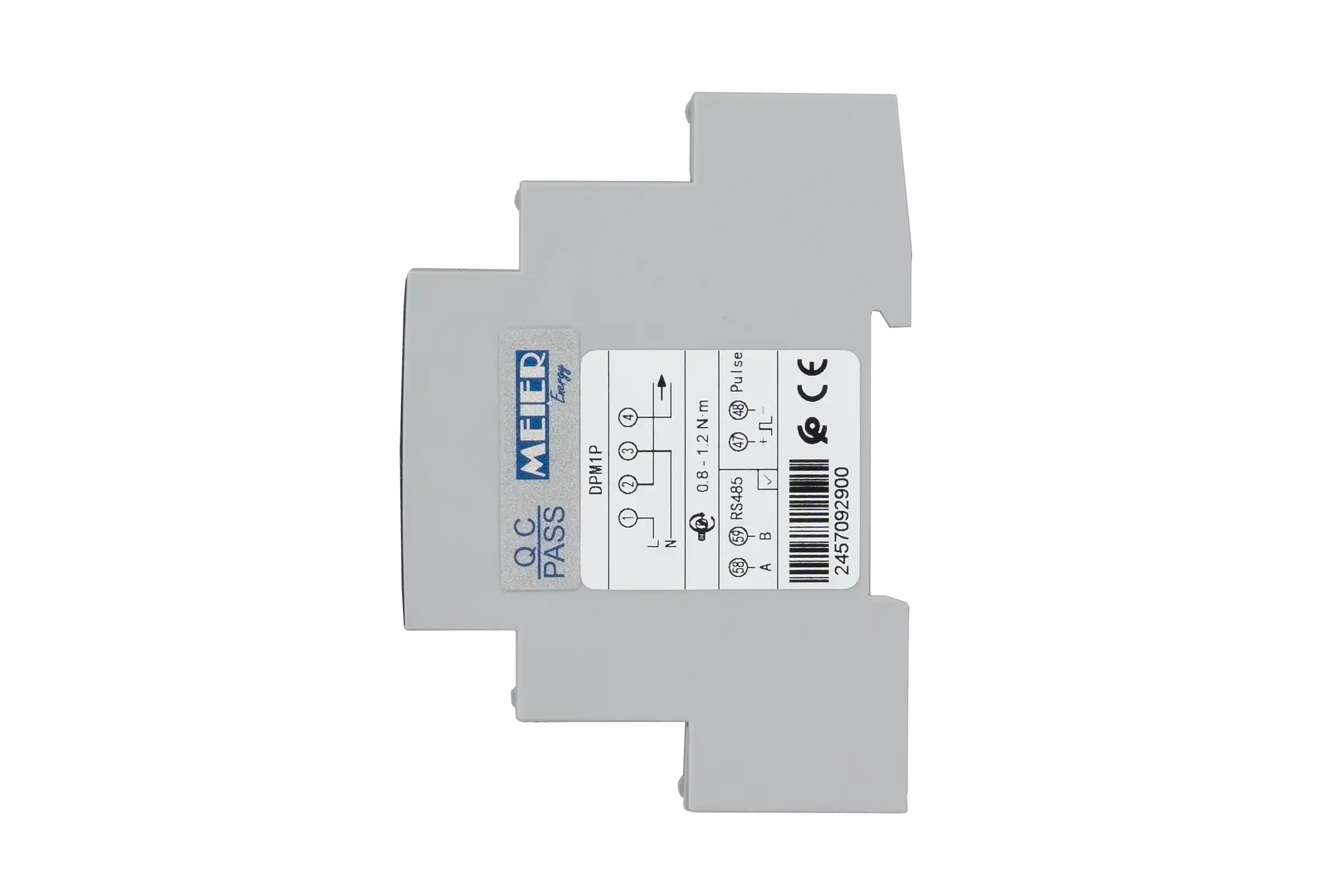

Installation and Connection

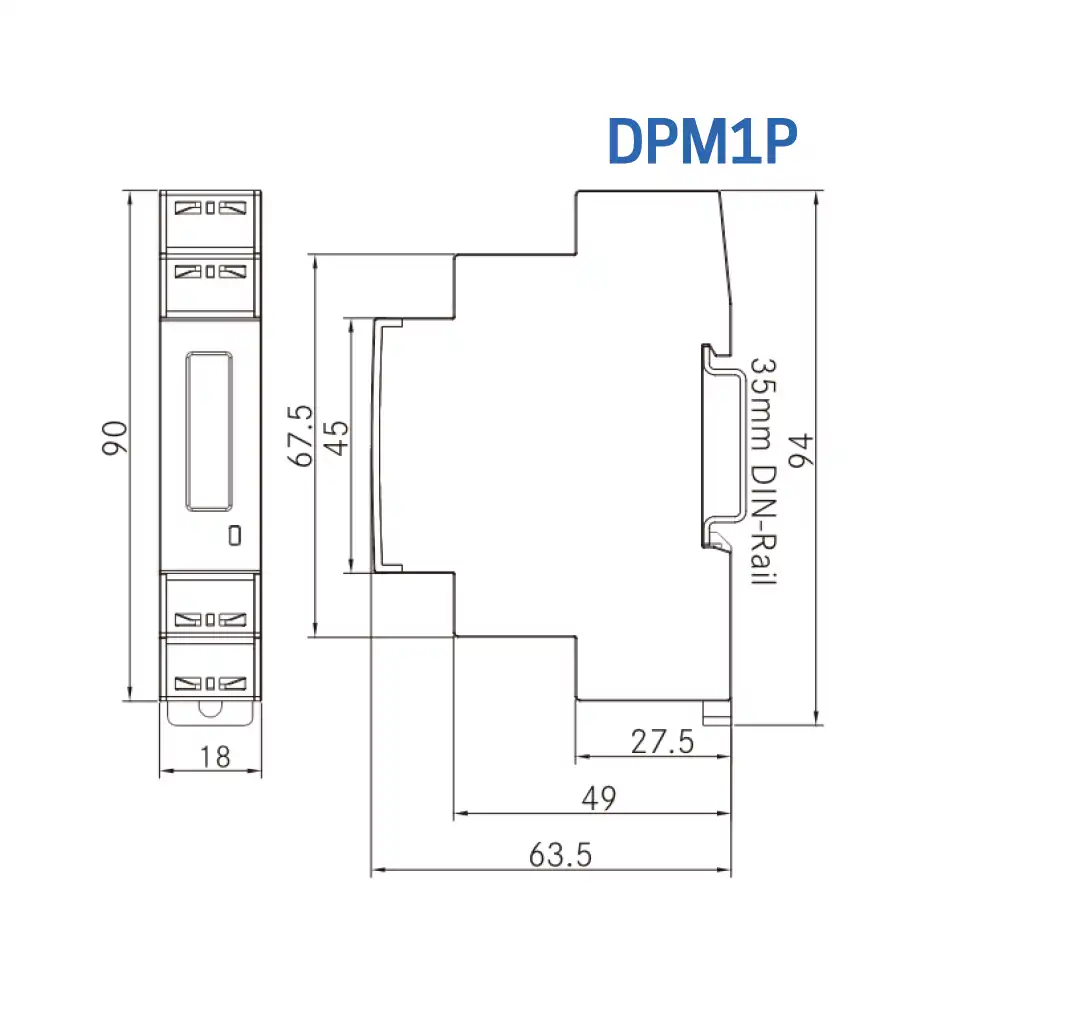

Dimensions

Dimensions

Dimensions
