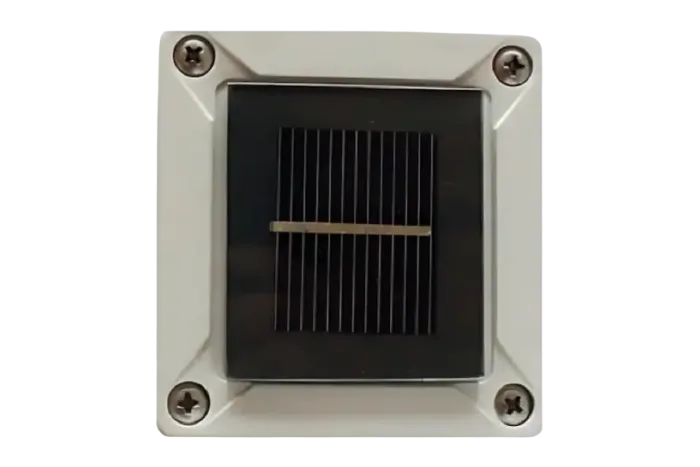

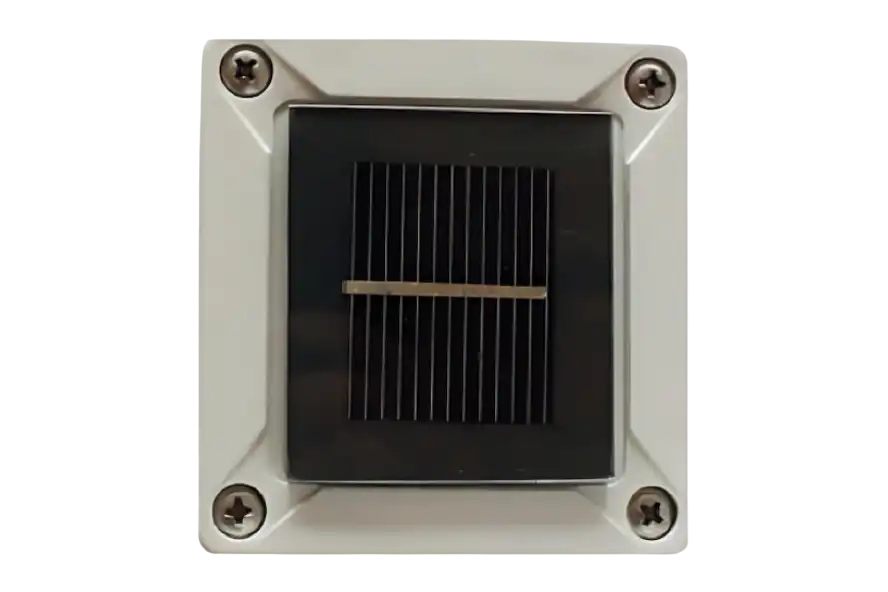

CRS320 - Solar irradiance sensor 1500 W/m2 - RS485

CRS320
Solar irradiance sensor 1500 W/m2 - RS485

  • Sensor type : Monocrystalline cell (33mm / 40mm)
  • Measuring range : 0 - 1500 W/m2
  • Sensor accuracy : +/-5% (annual mean)
  • Supply voltage : 12-30V DC
  • Casing : Polycarbonate, UV-resistant, with PG screw joint and pressure differential valve
  • Connection terminals : 1.5 mm2
  • Mounting : with drill hole to be fixed with a screw
  • Protection degree : IP65
  • Dimensions 150mm x 80mm x 60mm
