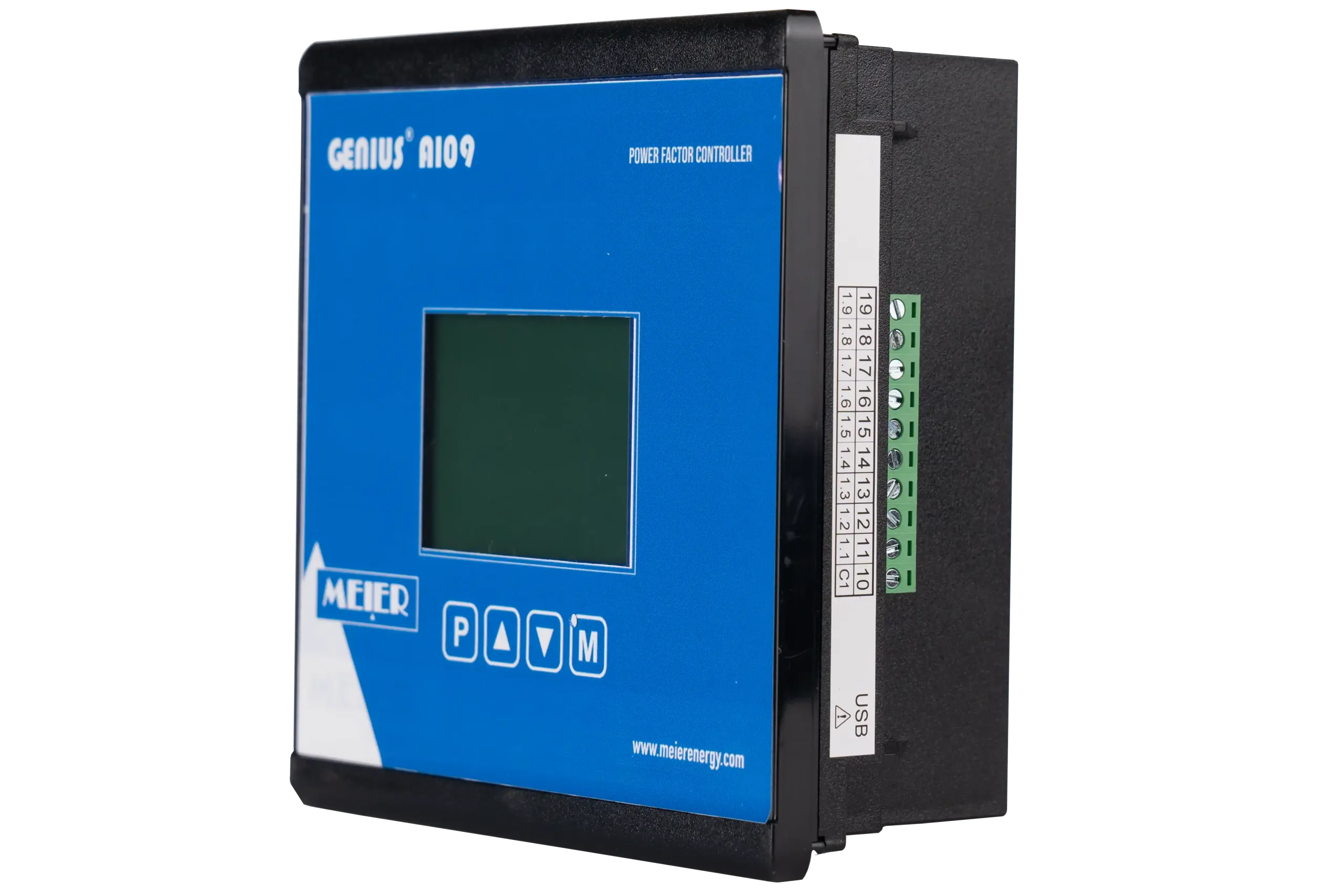

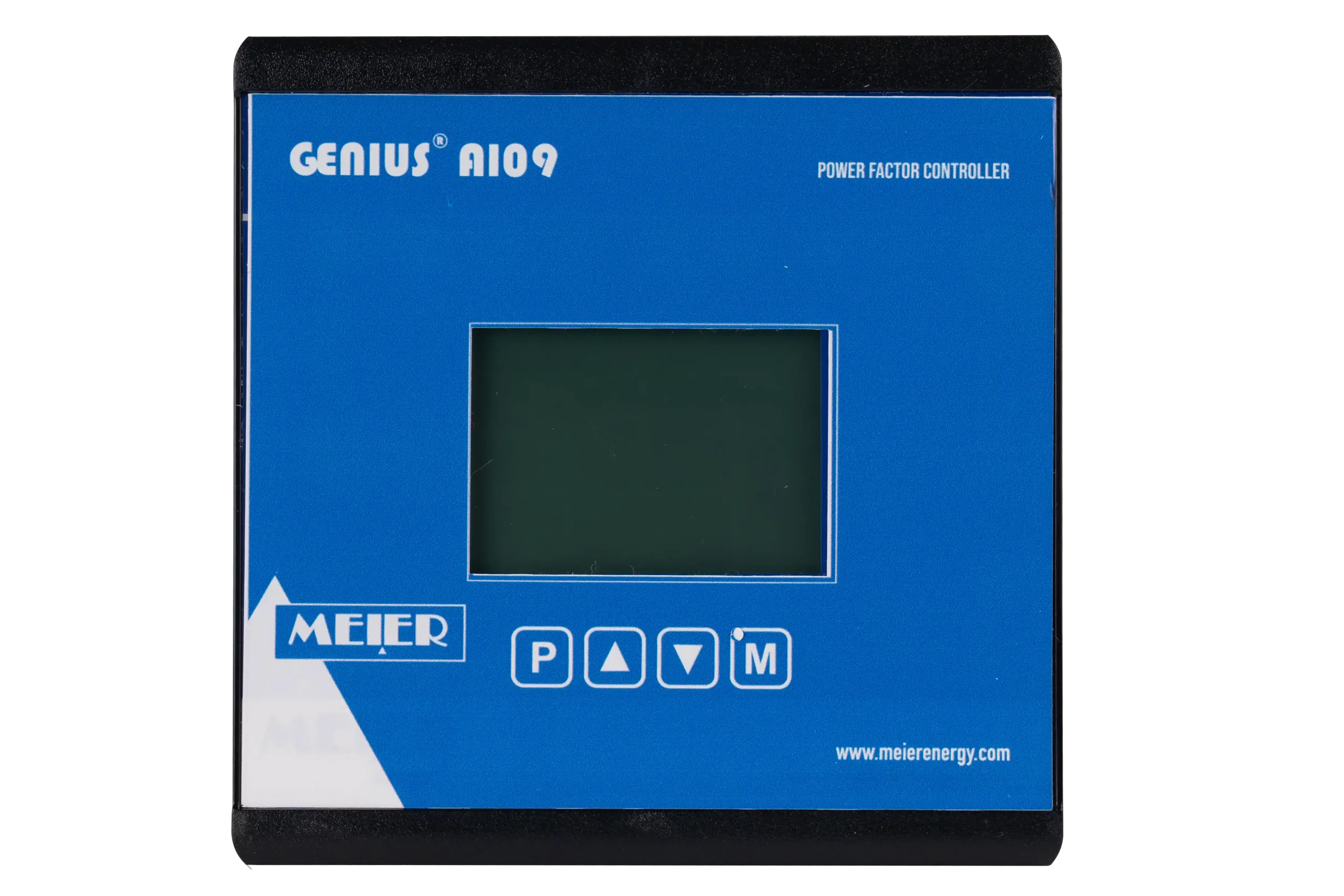

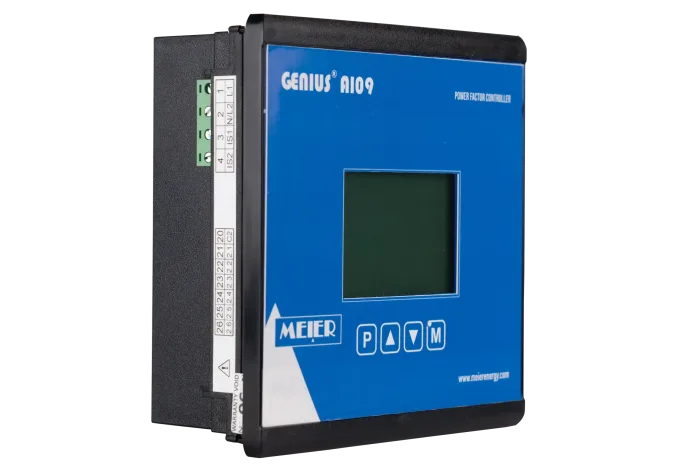

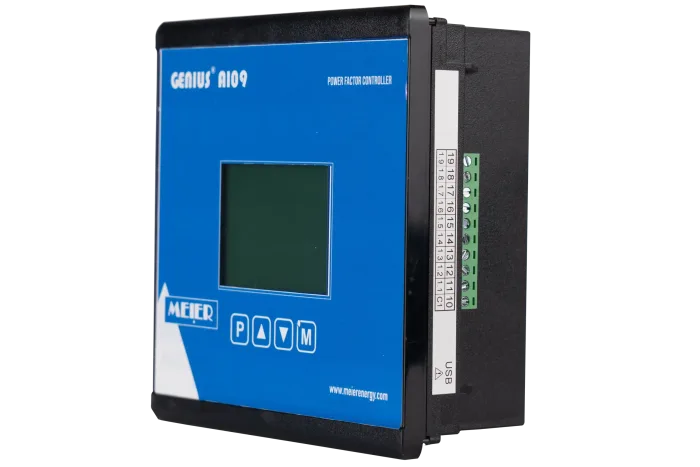

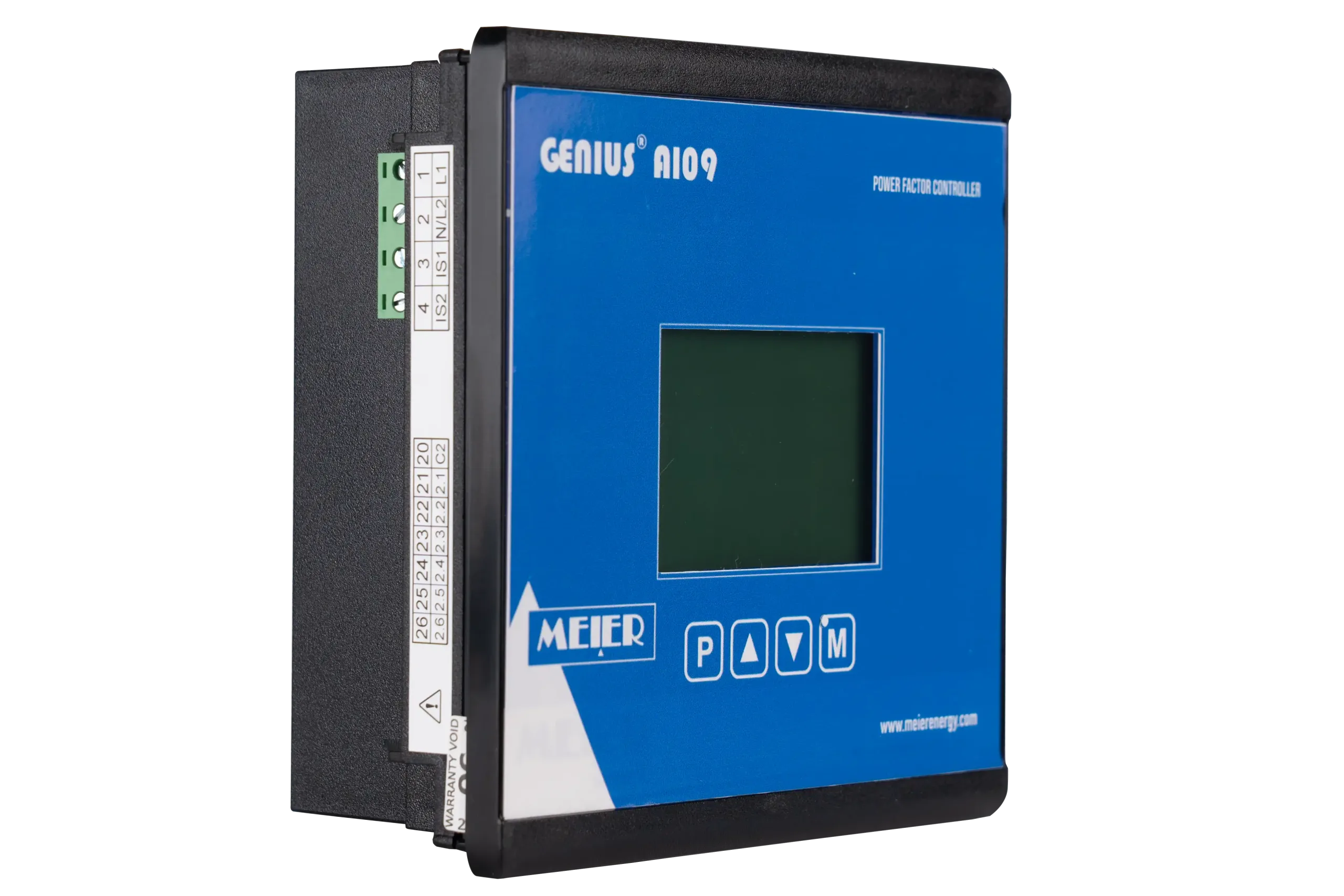

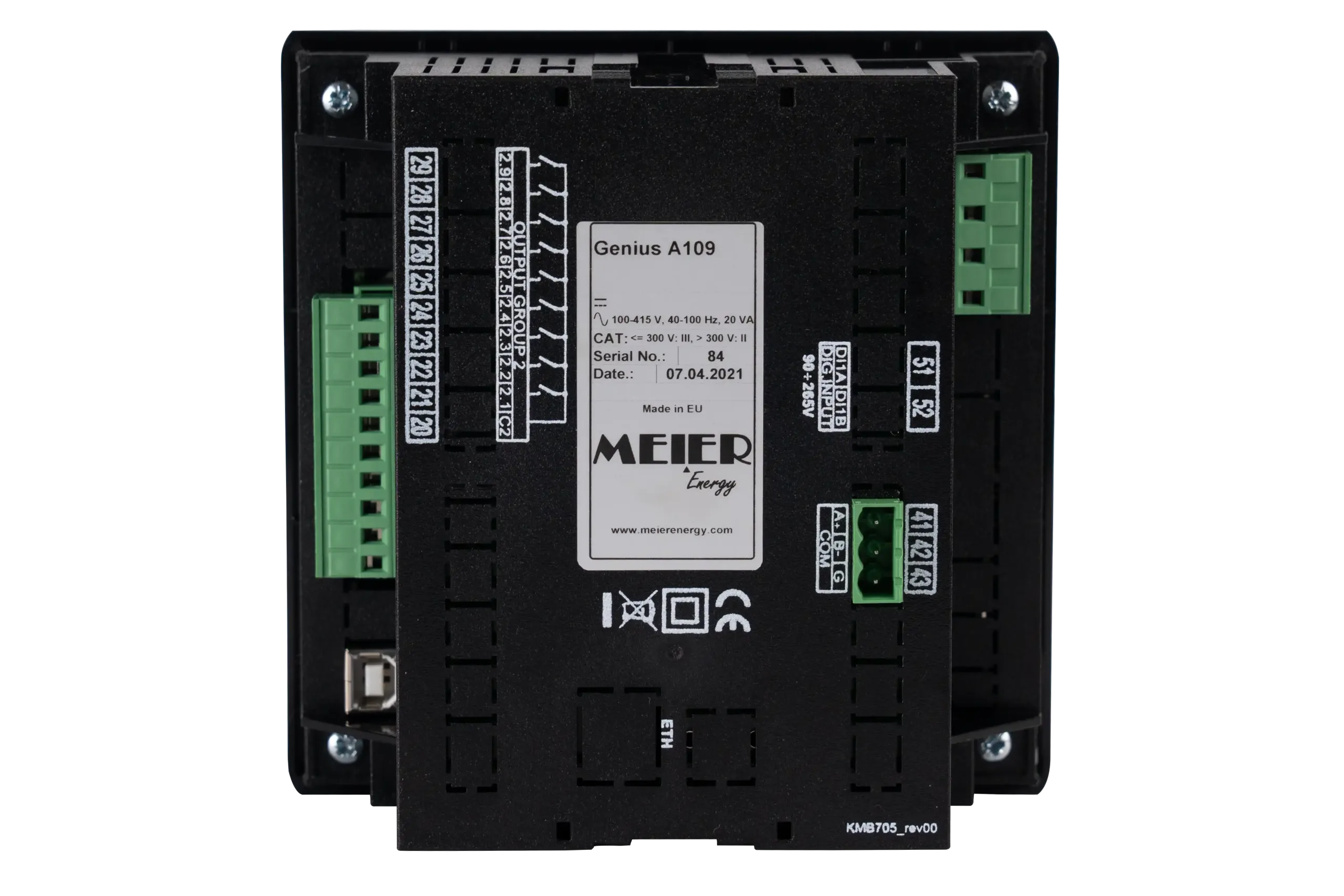

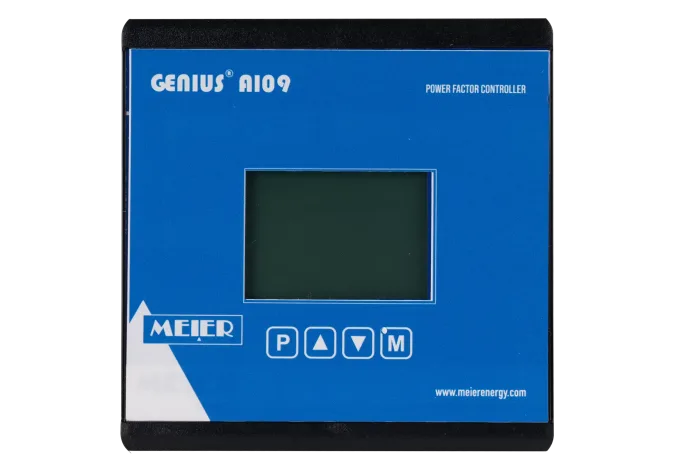

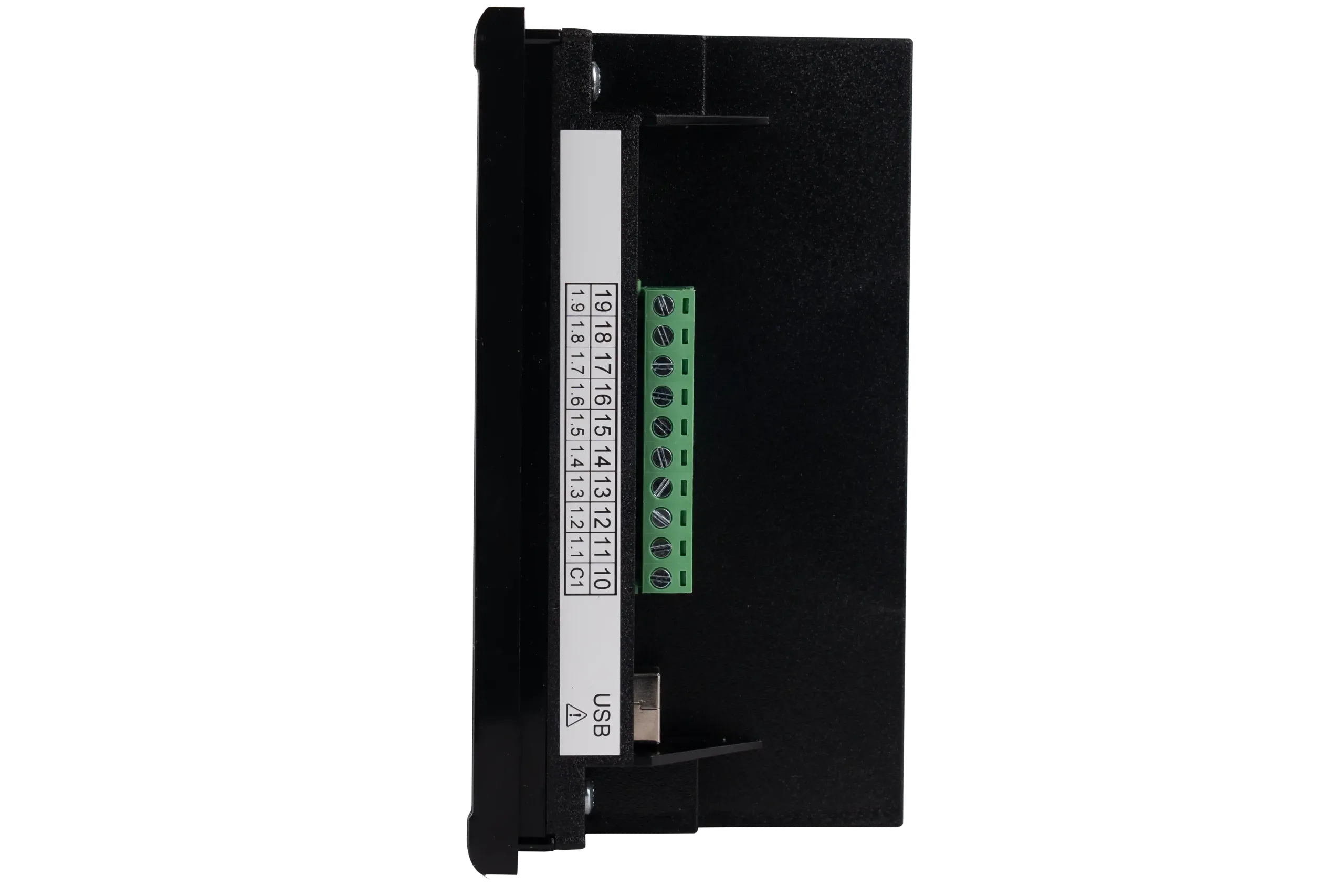

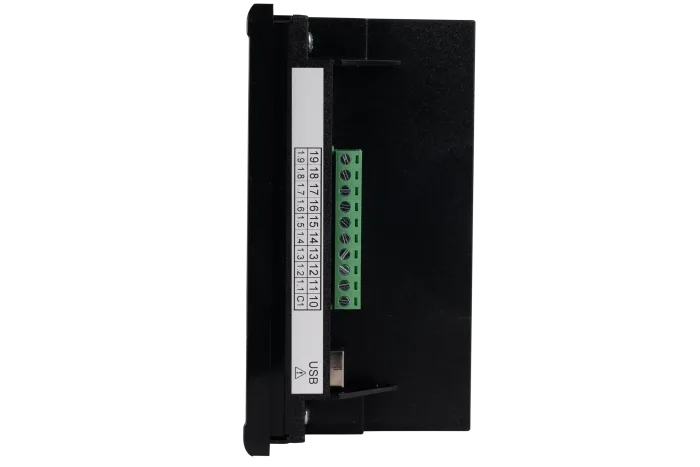

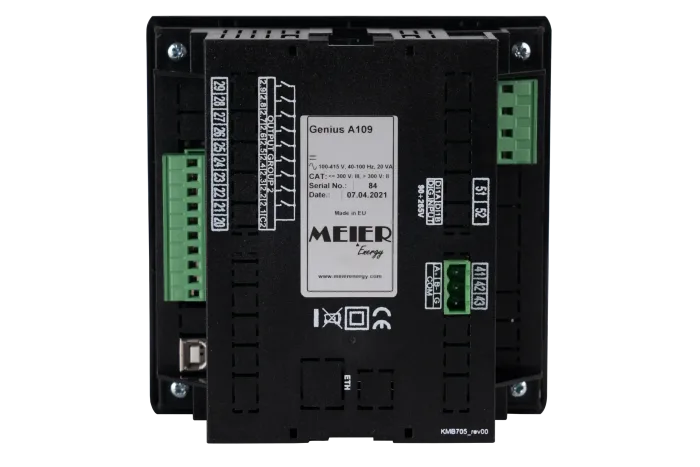

GENIUS® A109
Varmetric Relay

Intelligent Varmetric Relay - Genius® Axx Range - capable of managing up to 9 steps - for balanced Low Voltage, Medium Voltage, and High Voltage networks - equipped with a backlit LCD display.

    Standards:
    • IEC 61000 – 4- 2/3/4/5/6/11
    • IEC 55011, class A
    • IEC 55022, class A
    Certifications

    Description

    Main features

    • Measurement of current and voltage on 1 phase.

    • Plug & Play: Automatic recognition of steps (inductive or capacitive) and self-configuration.

    • Advanced management of steps: ability to program any capacitor power value (non-mandatory multiples).

    • Simultaneous management of capacitive and/or inductive steps.

    • Management of capacitor banks and single-phase, two-phase, or three-phase reactors.

    • Intelligent automatic management of steps, by blocks or individually based on the deviation from the target cos phi to achieve.

    • Temperature measurement with fan control.

    • Measurement of real power of each step (P and Q).

    • Measurement of capacitor harmonic load (CHL) to detect resonance phenomenon.

    • Measurement of THD U and THD harmonic distortion rate.

    • Possibility of programming alarms on any measured parameter.

    • RS485 (Modbus) Communication Port.

    Characteristics

    • Voltage and Current Measurement: Single Phase

    • Backlit LCD display

    • 9 steps

    • 3 alarm outputs

    • Supply voltage: 100-415V AC

    • Voltage measurement circuit: 100-415V AC (L-N/L-L)

    • Current Measurement Circuit: /1A or /5A

    • RS485-Modbus communication

    • Dimensions: 144mmx144mm

    Main features

    • Current and voltage measurement on 1 phase.

    • Plug & Play: automatic step recognition (inductive or capacitive) and self-setting.

    • Advanced step management: any capacitor power value can be programmed (multiples not mandatory).

    • Simultaneous management of capacitive and/or inductive steps.

    • Management of single-phase, two-phase or three-phase capacitor banks and chokes.

    • Intelligent automatic management of steps, in blocks or individually, depending on the deviation from cos phi to be achieved.

    • Temperature measurement with fan control.

    • Measure the real power of each step (P and Q).

    • Measurement of capacitor harmonic load (CHL) to detect resonance.

    • Measurement of THD U and THD harmonic distortion.

    • Alarms can be programmed for any measured parameter.

    • RS485 (Modbus) Communication Port.

    Characteristics

    • Voltage and current measurement: 1 phase

    • Backlit LCD display

    • 9 tiers

    • 3 alarm outputs

    • Supply voltage: 100-415V AC

    • Voltage measurement circuit: 100-415V AC (L-N/L-L)

    • Current measurement circuit: /1A or /5A

    • RS485-Modbus communication

    • Dimensions: 144mmx144mm
