RCM-VP

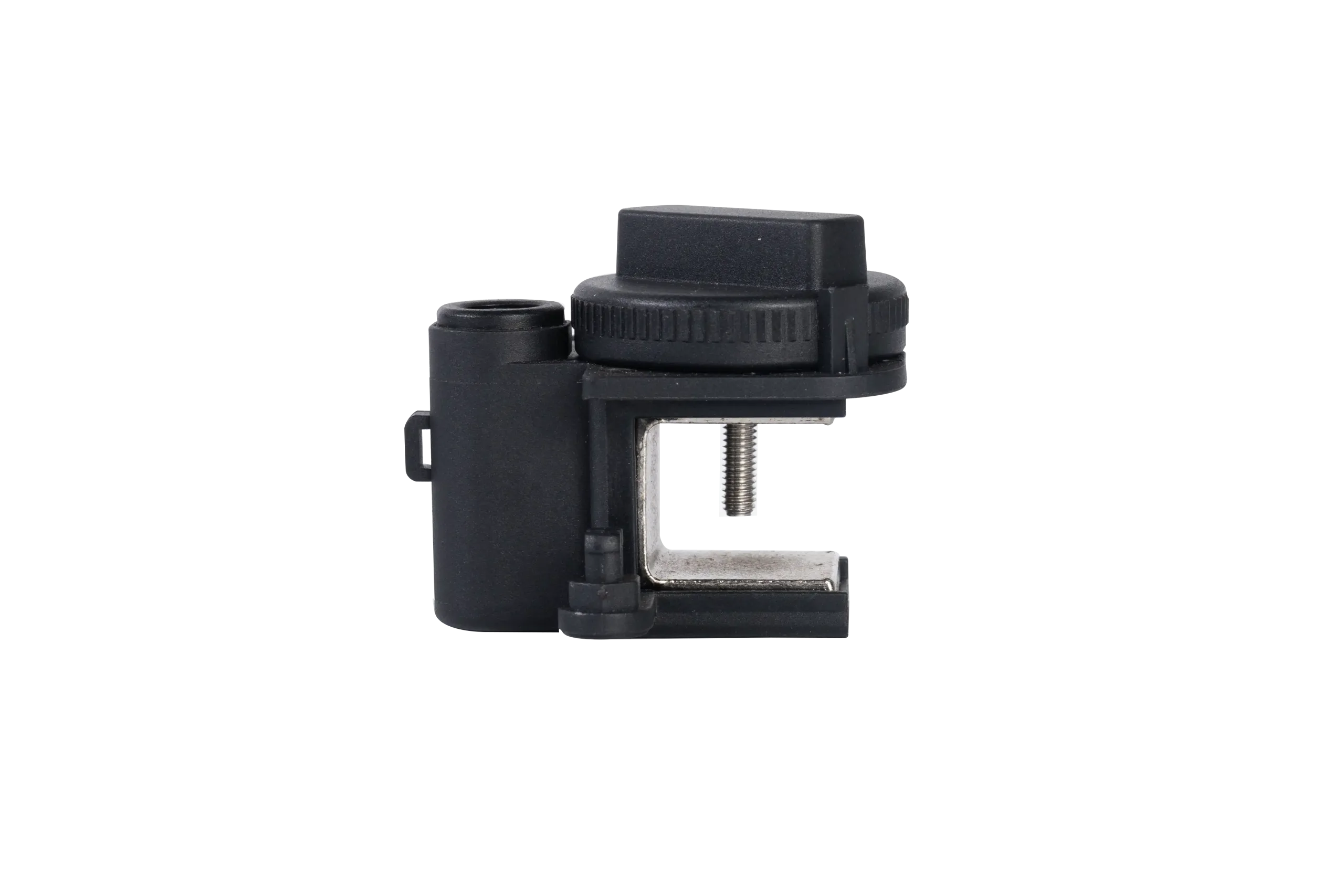

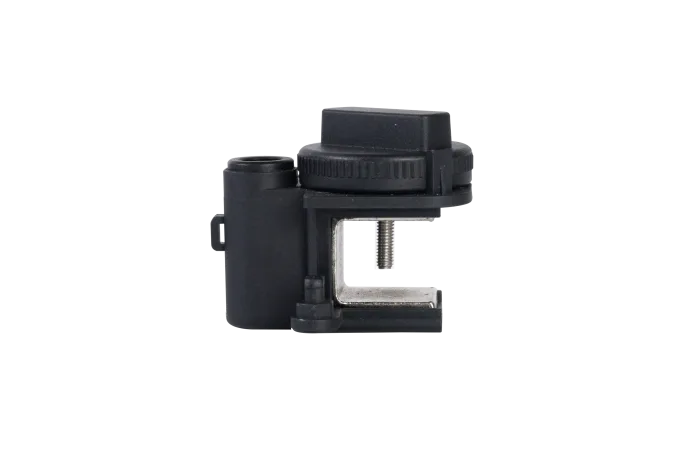

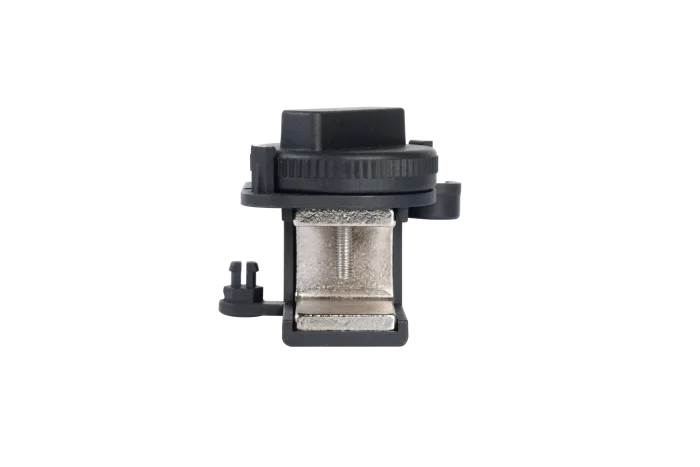

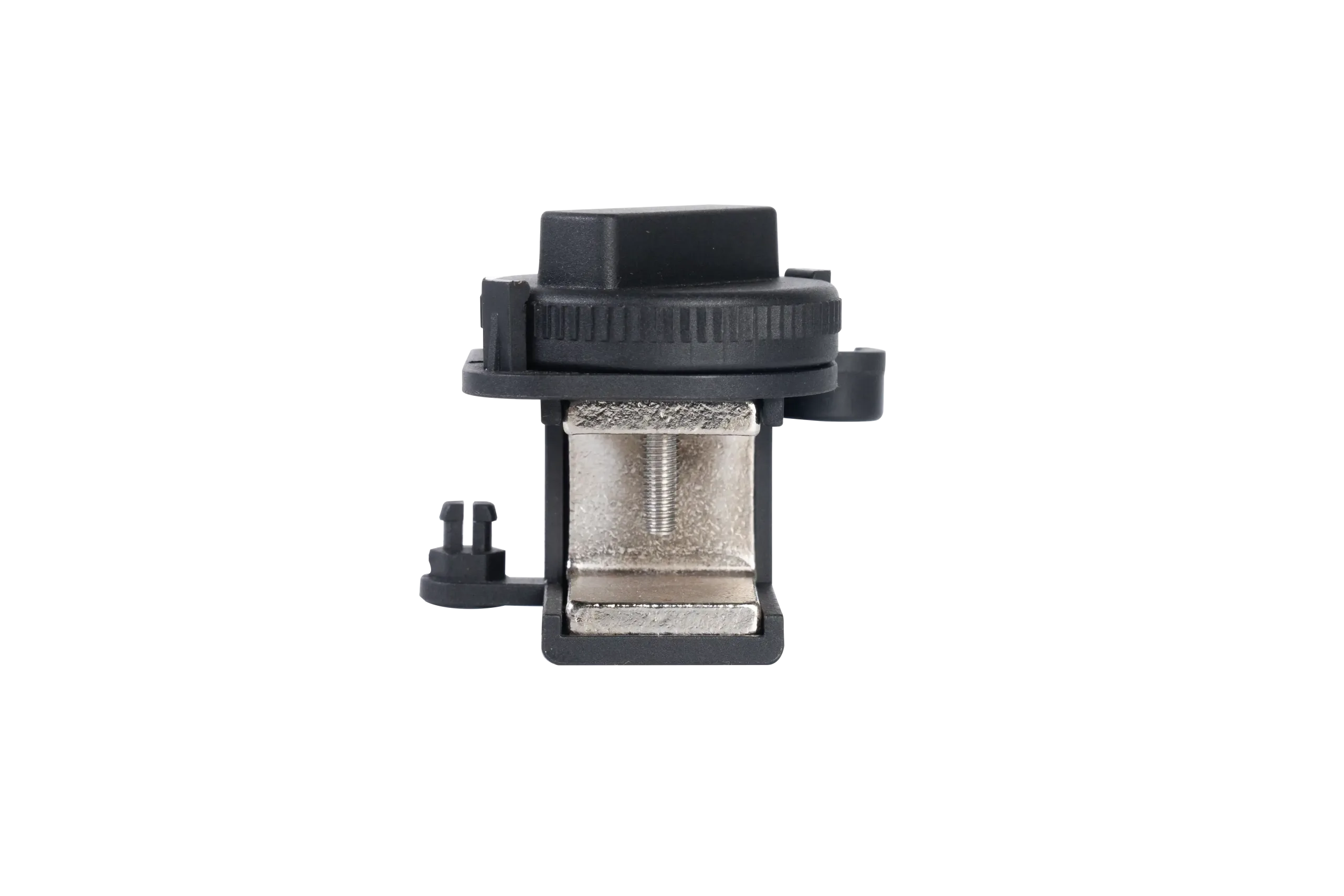

Non-intrusive voltage tap terminal for copper busbar

The 2-in-1 solution for non-intrusive busbar voltage measurement and attachment of the flexible Rogowski coil from the RCM series.

  • Secure and fast mounting with screws
  • Anti-loosening self-locking nut
  • Double-insulated banana plug cable
  • Universal connection with tip to convey voltage to a measuring device.
Certifications

Description

Measuring current in a live busbar has been made easier with the advent of flexible Rogowski coils. However, voltage tapping has remained unanswered.

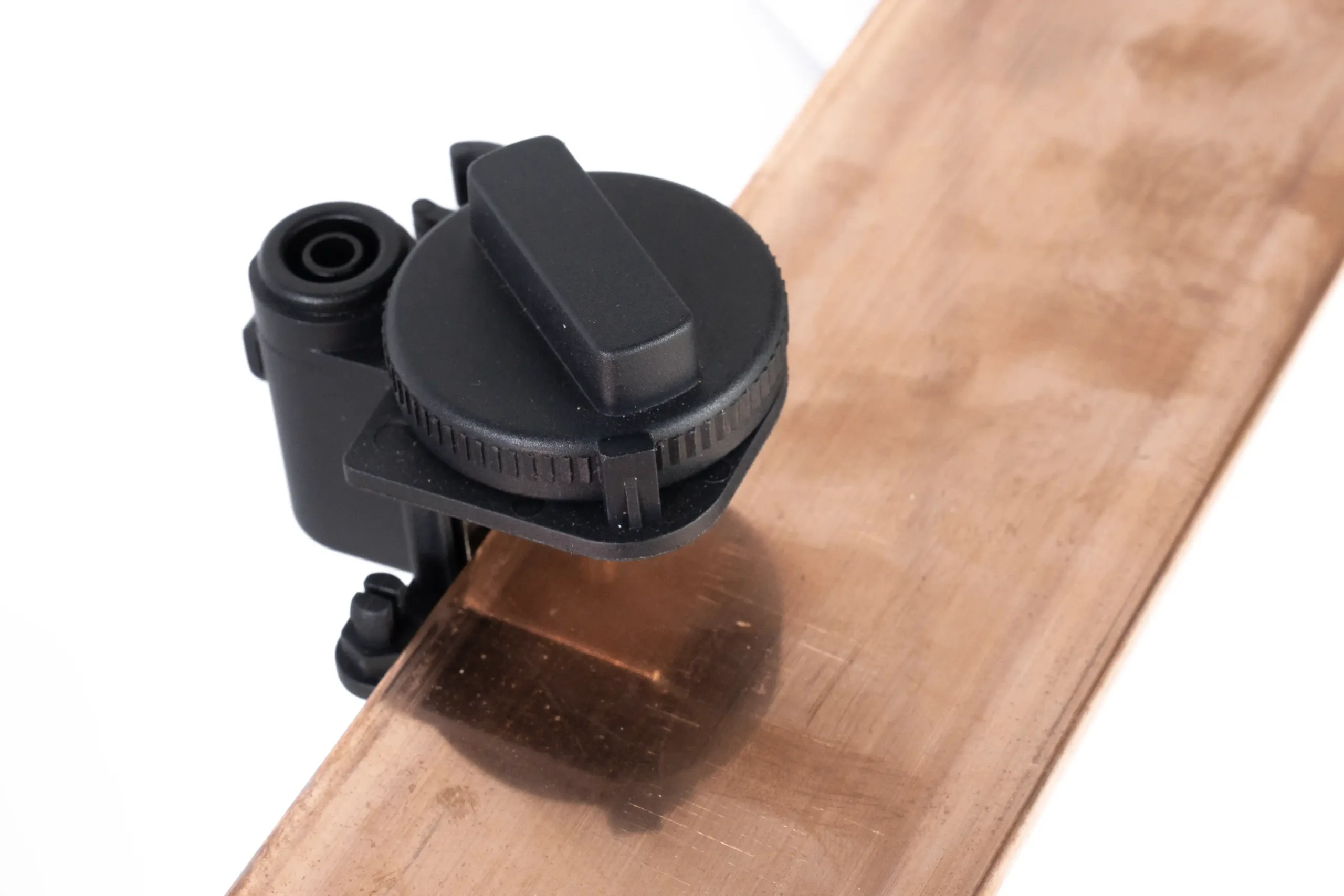

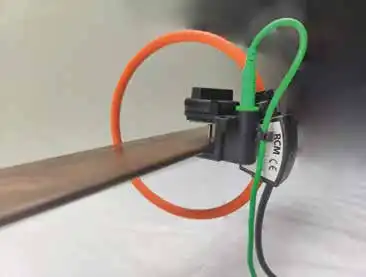

The solution was finally provided by the new RCM-VP voltage tap terminal, which optimizes the installation of Rogowski coils from the RCM range (or any other 8 mm diameter Rogowski coil) by ensuring both voltage tapping on the conductive bar and securing the Rogowski coil.

Advantages

  • Maintenance-free

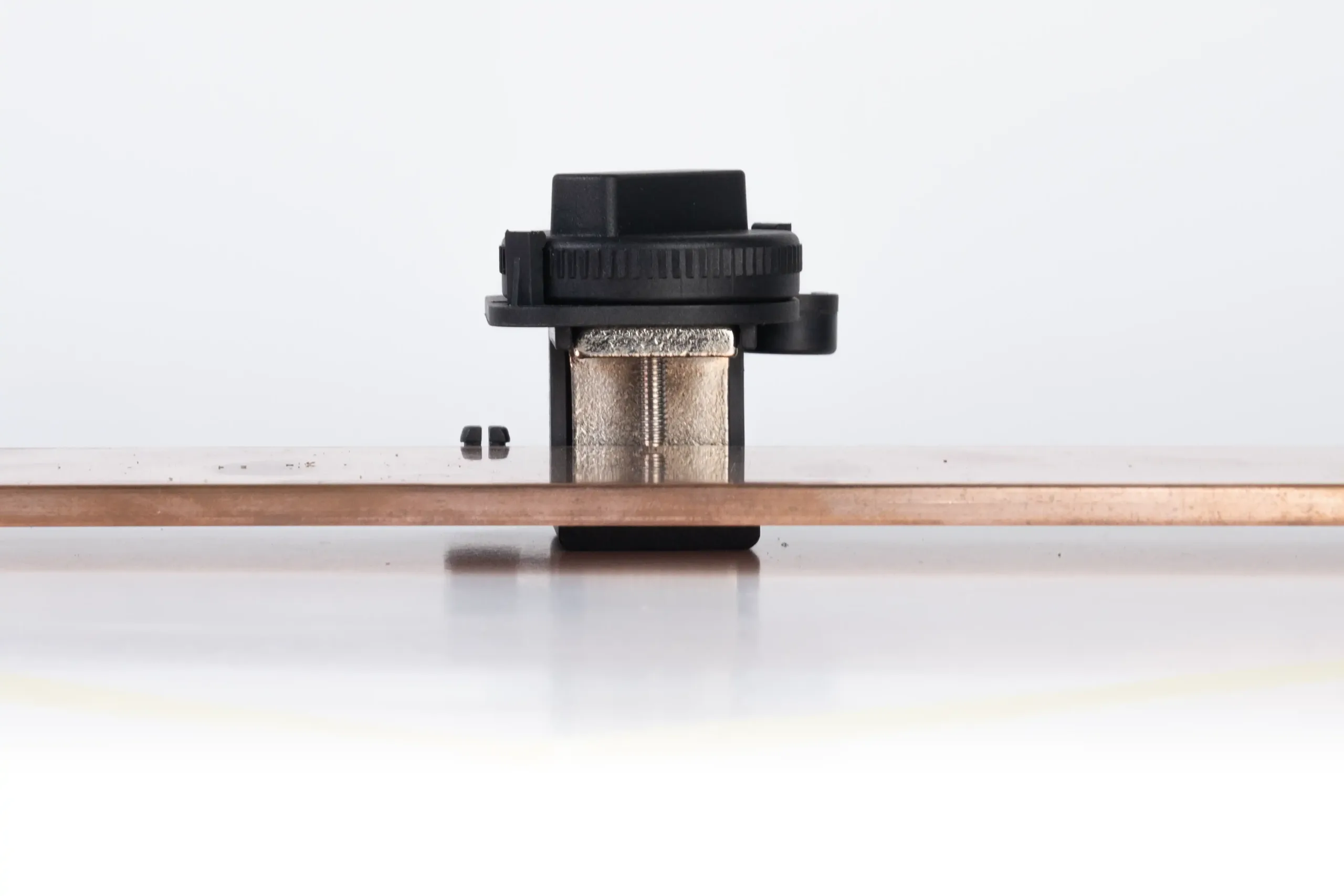

  • Allows the Rogowski coil to be centered on the busbar, thus optimizing current measurement accuracy.
  • Suitable for copper bars with a thickness of 5 to 10 mm.
  • Double insulation: no risk of electrocution.

Areas of Application

For measuring the busbar voltage of L, N, or PE conductors in LV distribution boards and meter cabinets.
  • For securing and centering 8mm diameter flexible Rogowski coils on the busbar.

Operating Mode

Fully insulated terminal for tool-free conductor connection
  • Insulated screw tightening on the operating side, which also serves to take voltage measurements
  • Screw fixing secured by an anti-loosening system

Suitable for busbars

Section (thickness): 5 – 10 mm

Material

Polycarbonate

  • Fire resistance according to UL 94-V0 standard
