SUPERVISION AND MONITORING SYSTEM

Monitor your compensation battery and factory from your Intranet or the Internet.

    Description

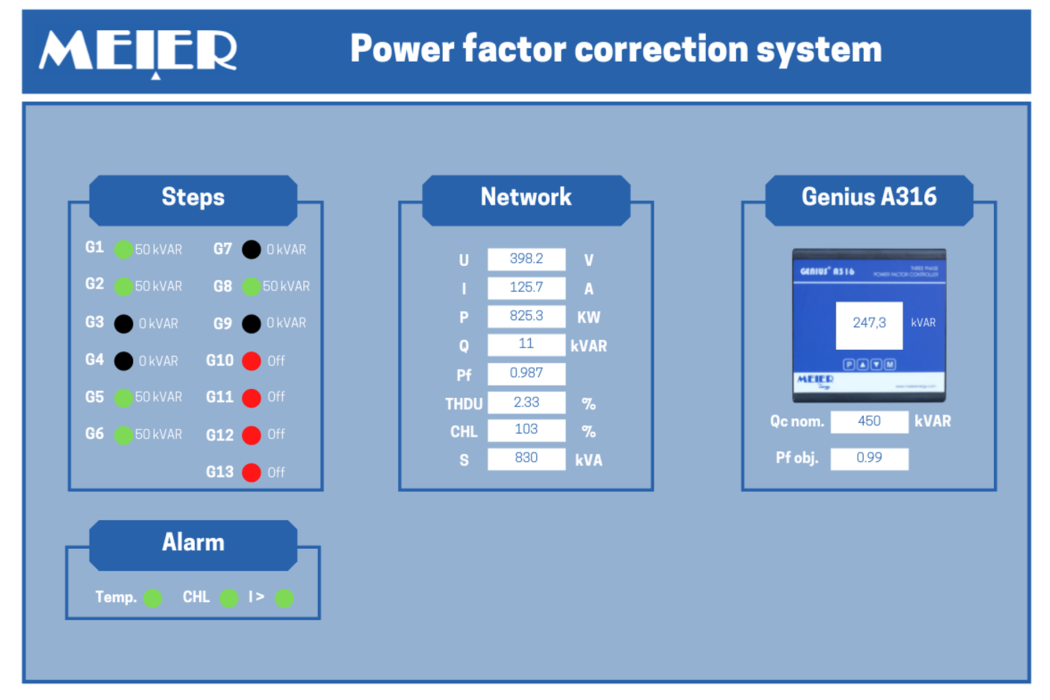

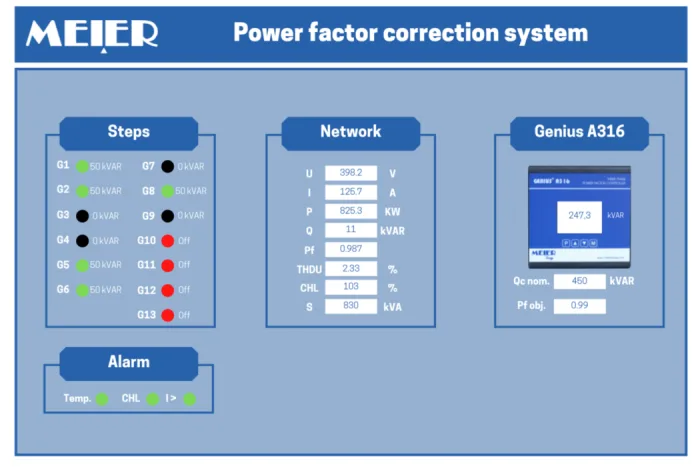

    Your compensation battery can be optionally equipped with the “Monitor” supervision and monitoring system. This system allows you to monitor every detail of the battery’s operation:

    • Total power delivered by the compensation battery;
    • Operating state of each step (On-Off-HS);
    • Nominal and measured actual value of each step;
    • Temperature inside the cabinet;
    • Level of harmonic distortion of current and voltage;
    • Active alarms and alarm history.

    As the Genius® varmetric relay incorporates a class 0.2S network analyzer and is installed at the head of your installation, the system will provide you with all the necessary data for monitoring your installation:

    • Total P, Q and S powers demanded by the factory;
    • Active and reactive energies consumed and produced;
    • Currents and voltages on each phase (if Genius® A316 is installed);
    • Total harmonic distortion rates (THD U and THD I);
    • Harmonics of current and voltage by rank;
    • Voltage variations.
    • …Etc.

    Since the Monitor system comes with an integrated web server, you can also schedule automatic report generation (consumption report per time slot, electricity bill, etc.) and receive alarms via email, SMS, or locally (audible alerts).
