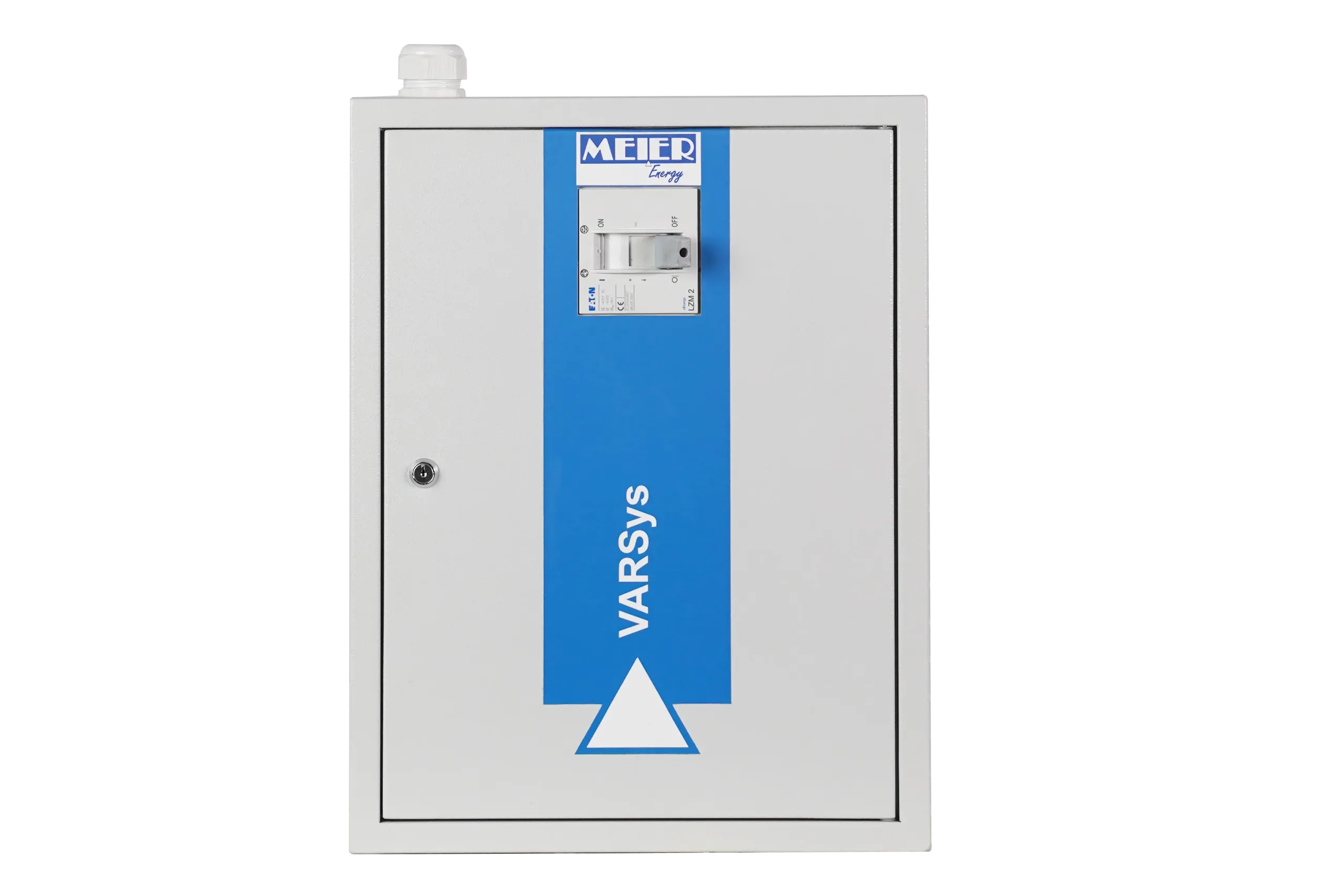

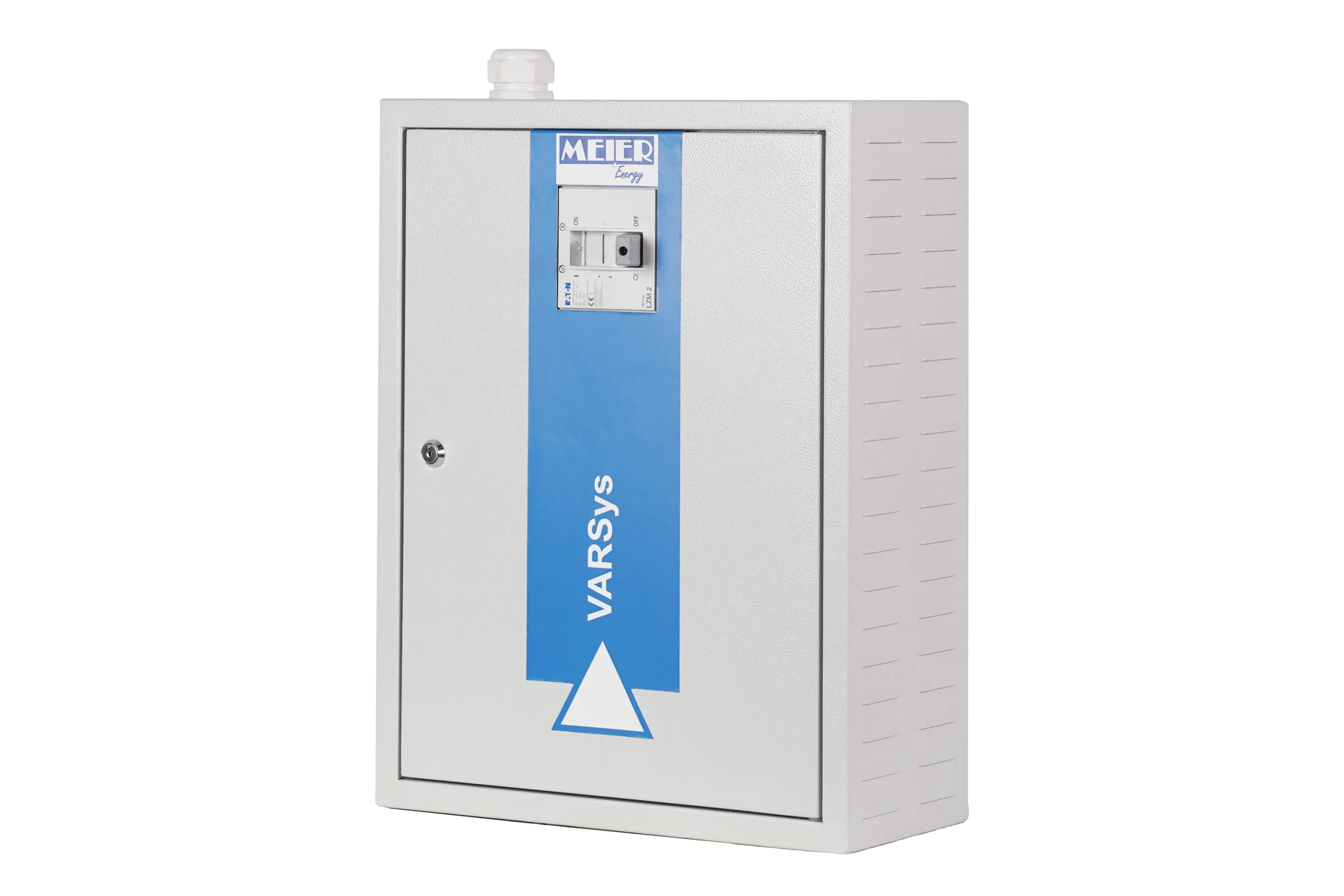

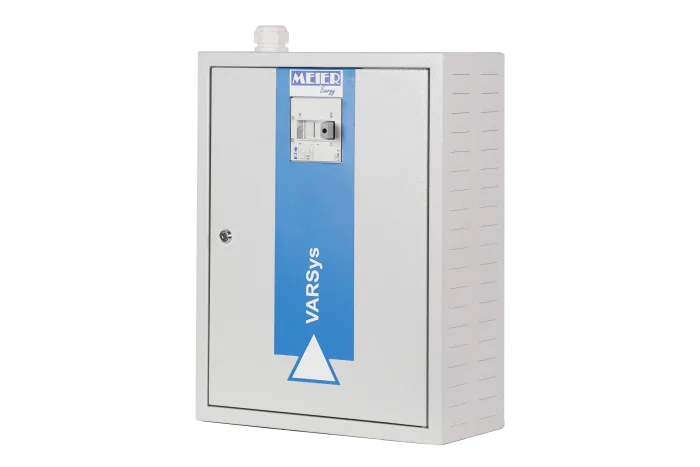

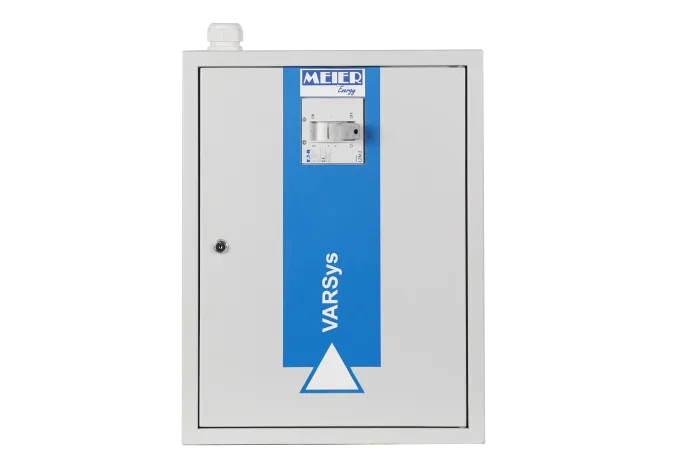

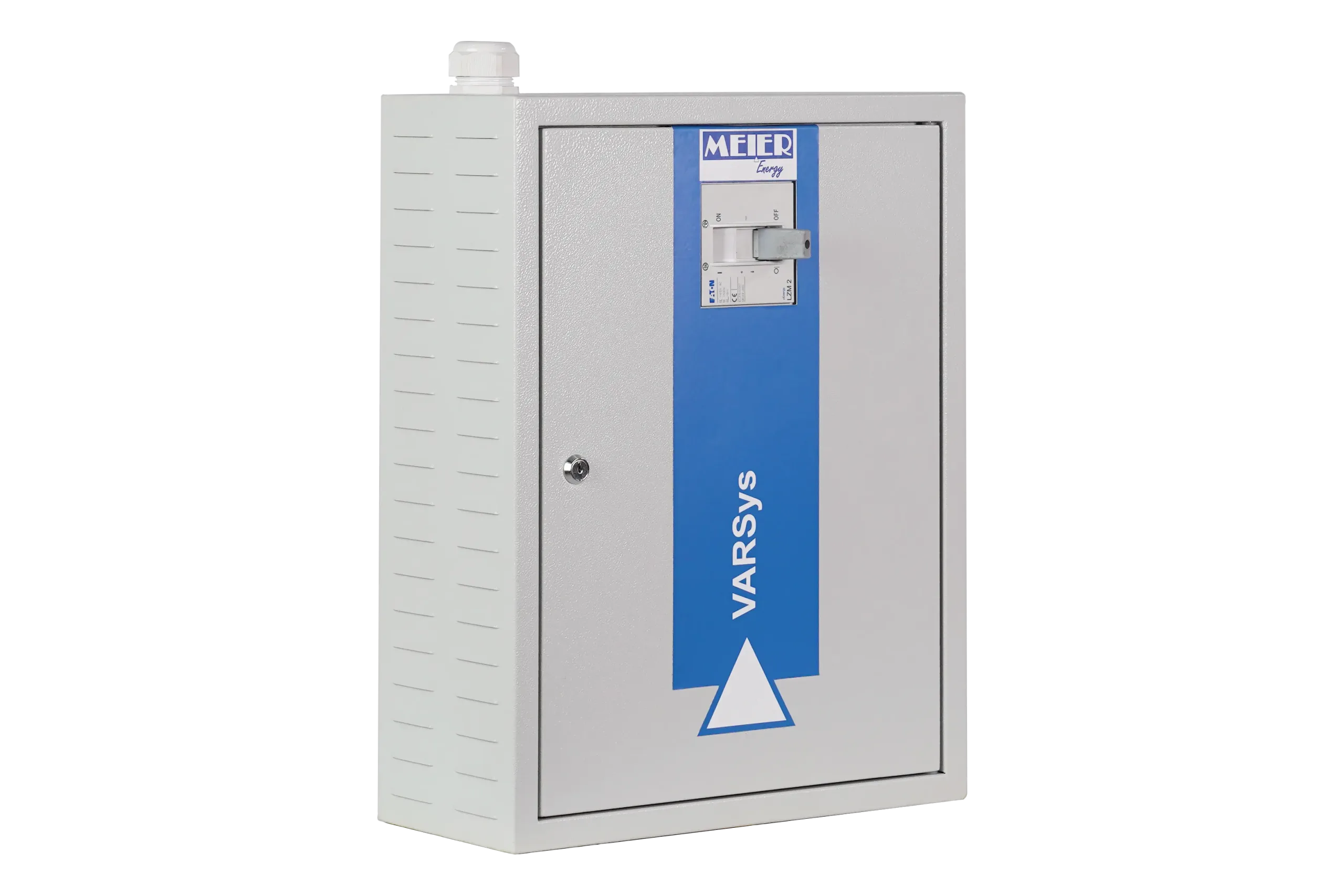

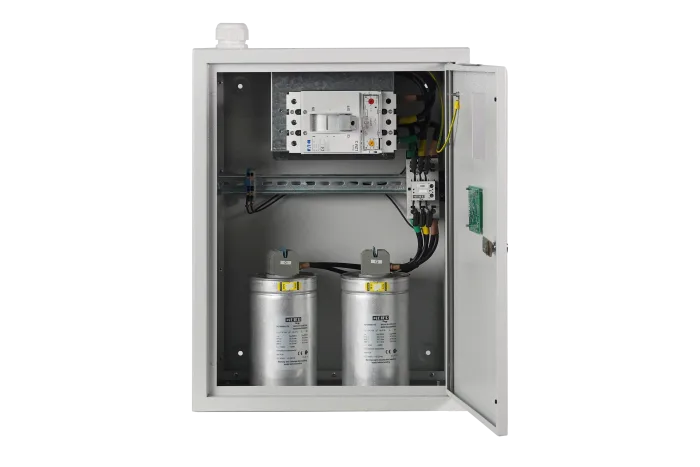

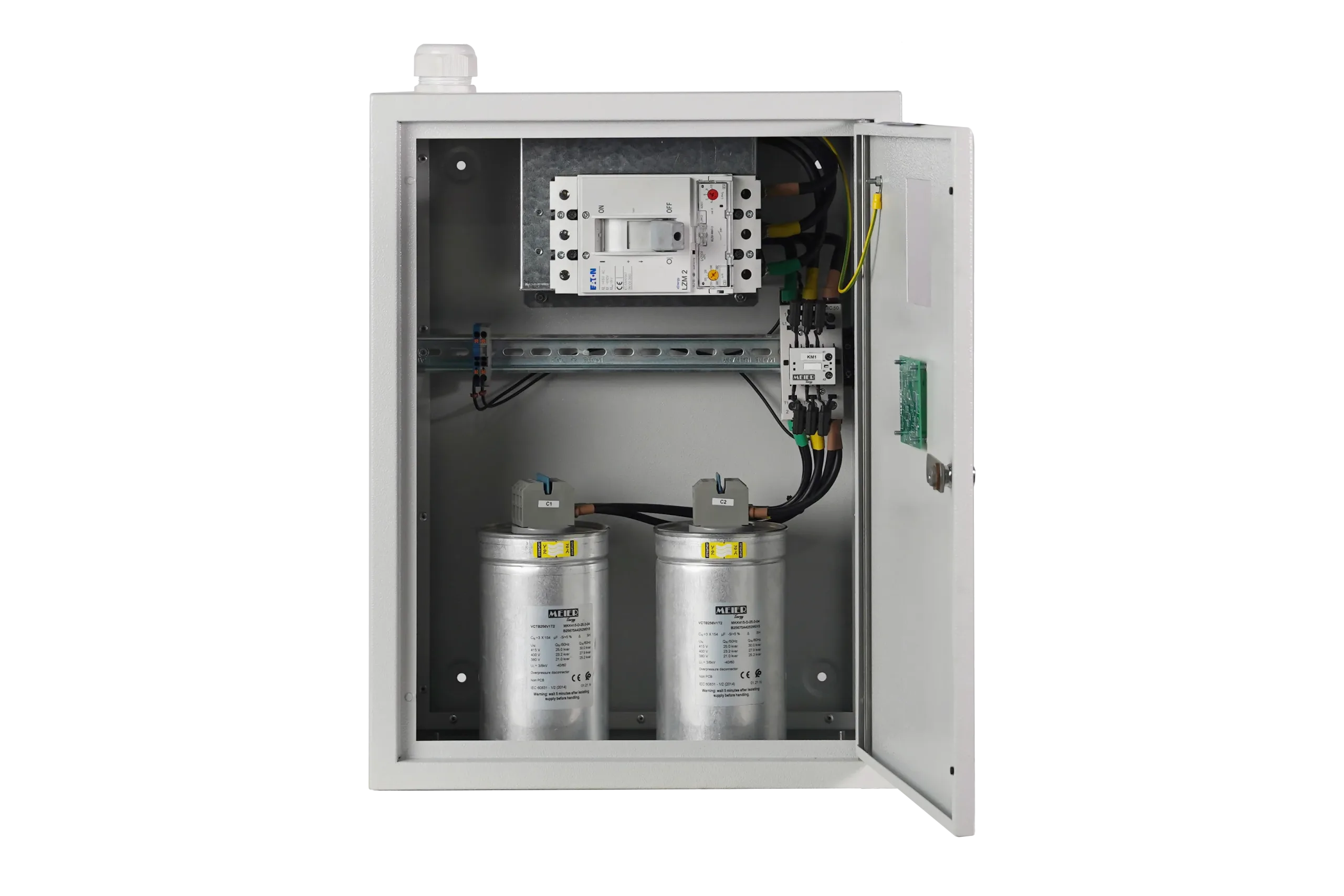

VARfix® Range H

Fixed Compensation Panels

  • Fixed Compensation
  • 415 V / 50 Hz
  • Top Entry
  • Moderately polluted network 3
  • No risk of resonance
Standards:
  • IEC 61921
  • IEC 61439-1/2
Certifications

Environment

  • Installation: Indoor

  • Ambient Temperature: -5°C to 45°C

  • Average Daily Temperature: Maximum +35°C

  • Humidity: Up to 95%

  • Maximum Altitude: 2000m

GENERAL CHARACTERISTICS

Electrical Specifications
Nominal voltage415 V – 50 Hz
Capacity Tolerance-5%, +5%
Connection TypeThree-phase
Power Loss< 2.5 W/kVAr
Maximum Allowable Current
(with thermal protection included)		1.43 In
Maximum Allowable Voltage1.1 x Un, 8h every 24h
Isolation Voltage690 V
Nominal Impulse Withstand Voltage (Uimp)8 kV
Box
Degree of protectionIP42
ColorRAL 7035
Degree of Mechanical ResistanceIK10
Head Protection
With Main SwitchRotary Handle Switch-Disconnector
The compensation bank must be protected upstream by a circuit breaker
With Circuit BreakerMolded case circuit breaker
Rotary handle on demand

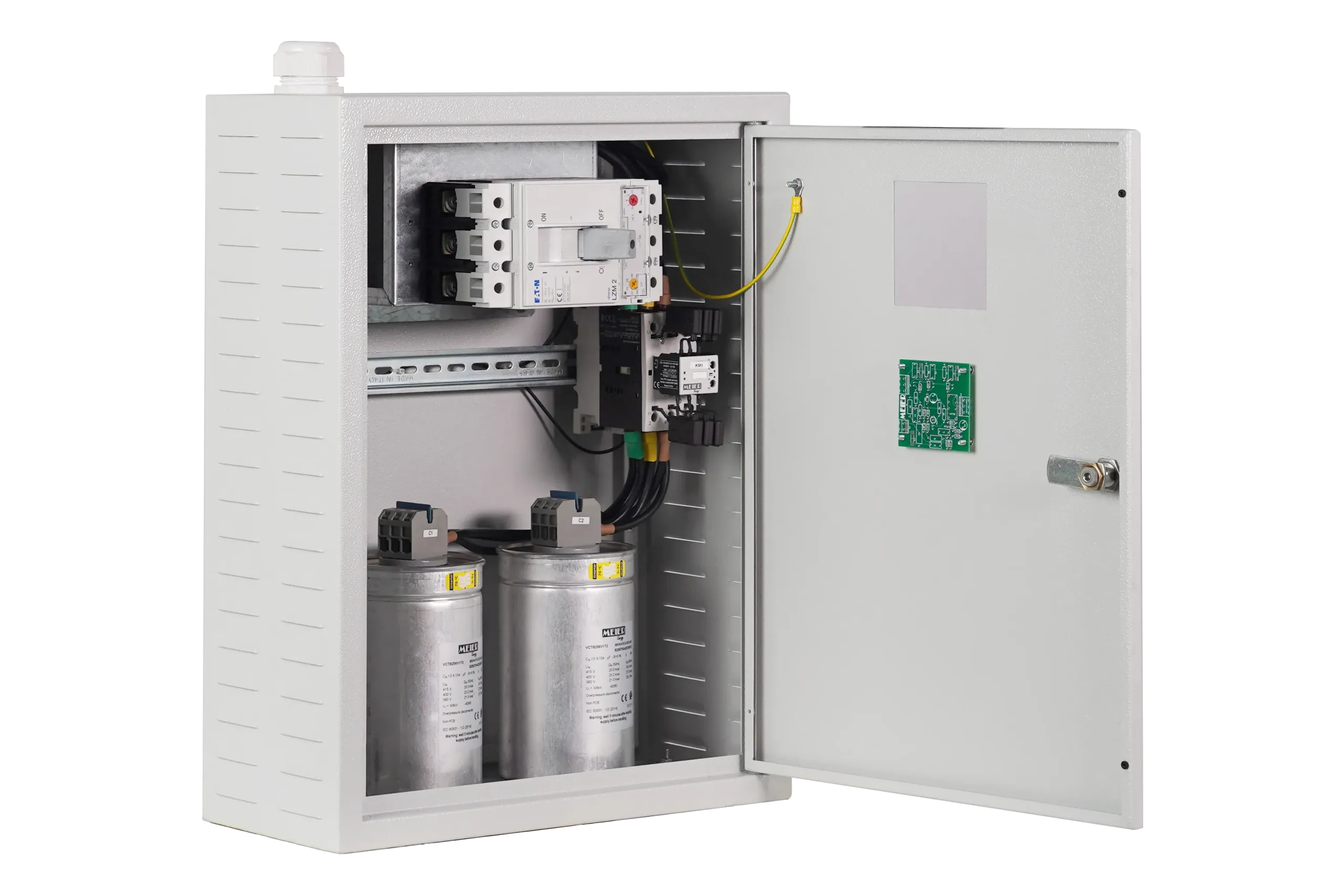

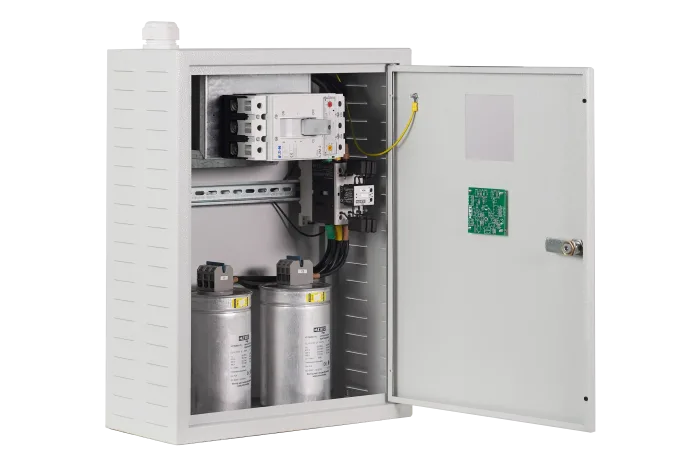

Components
Type of CapacitorsVARCap® 480 V – 50 Hz
Maximum Overload: Up to 2.0 In
Maximum Inrush Current: ≤500 In
Operational Ambient Temperature: -40°C – +60°C
Overvoltage Protection for all 3 Phases
Discharge Resistance 50 V – 1 min
Signaling
3 LED voltage presence indicators on the front panel
