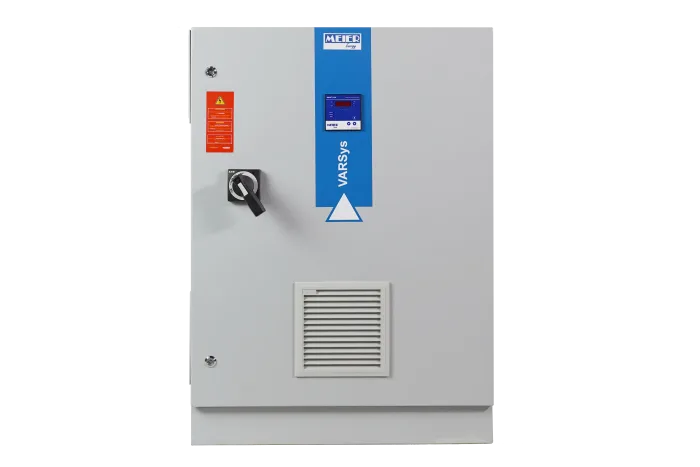

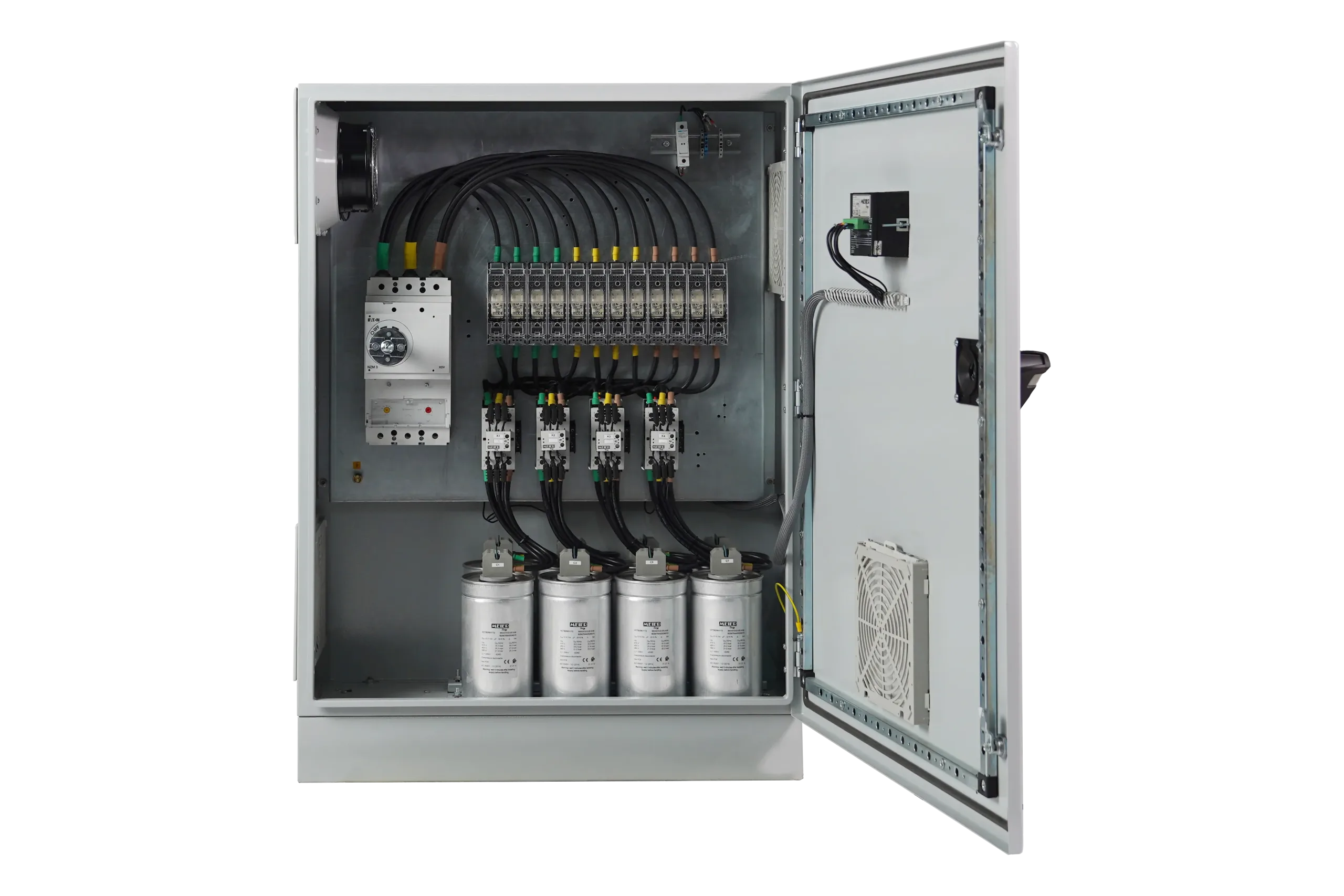

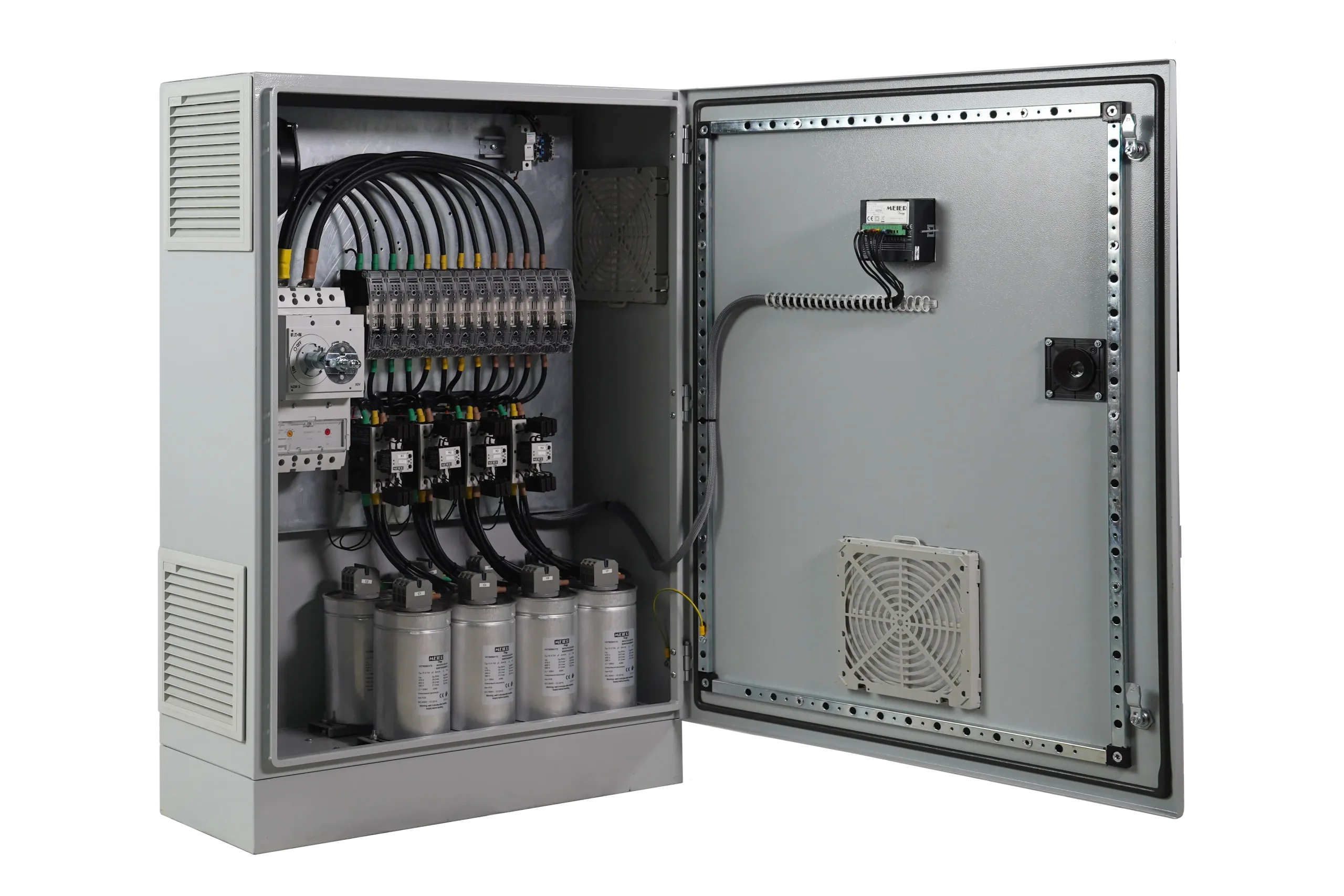

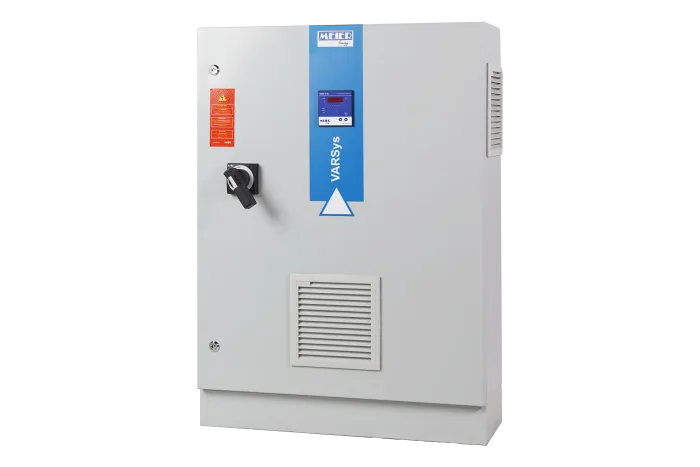

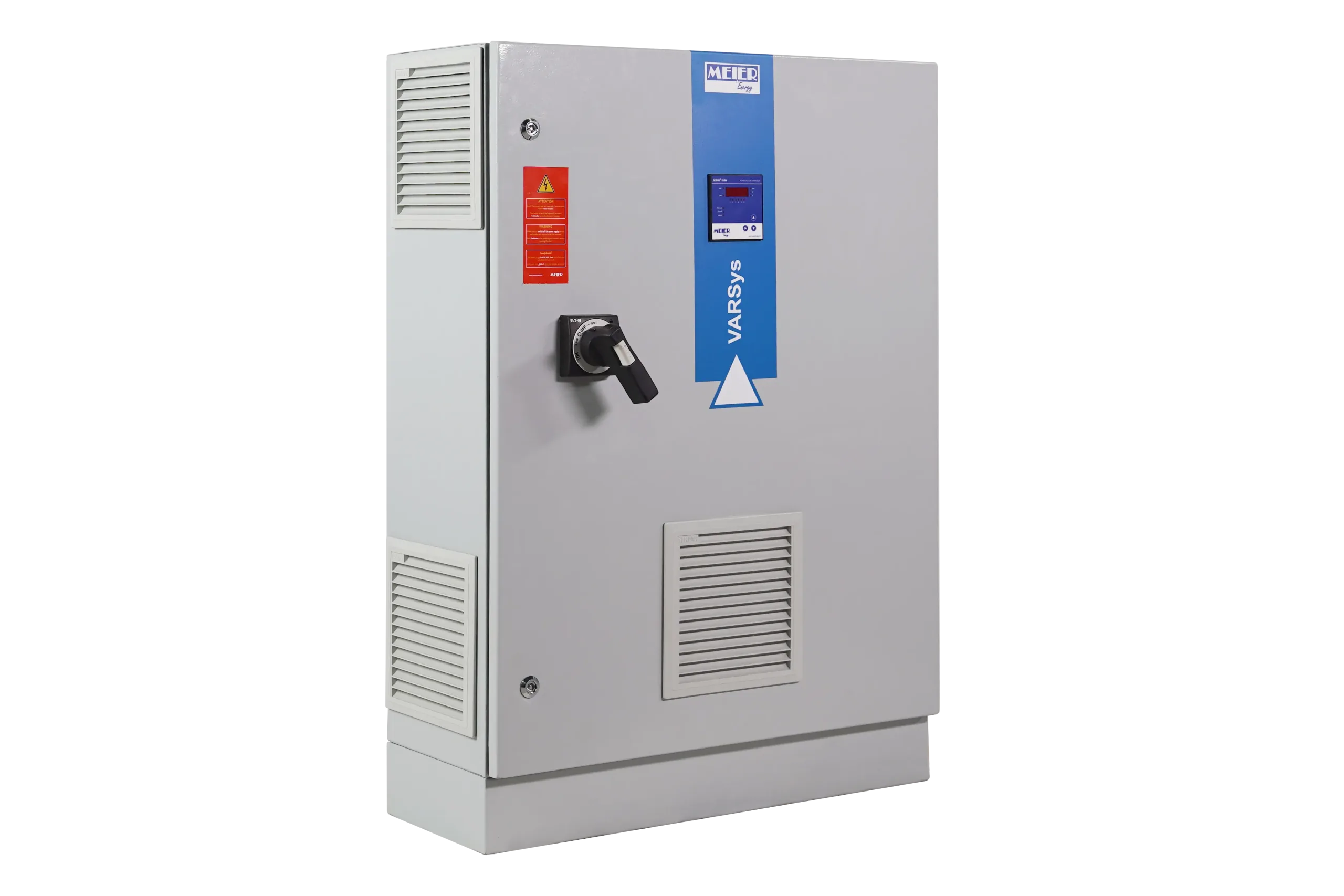

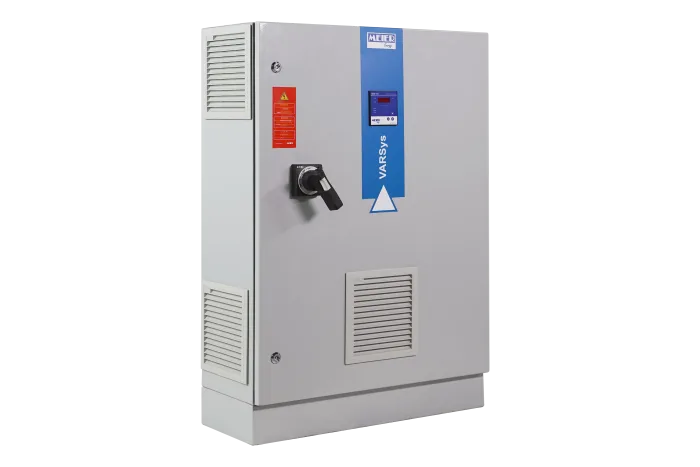

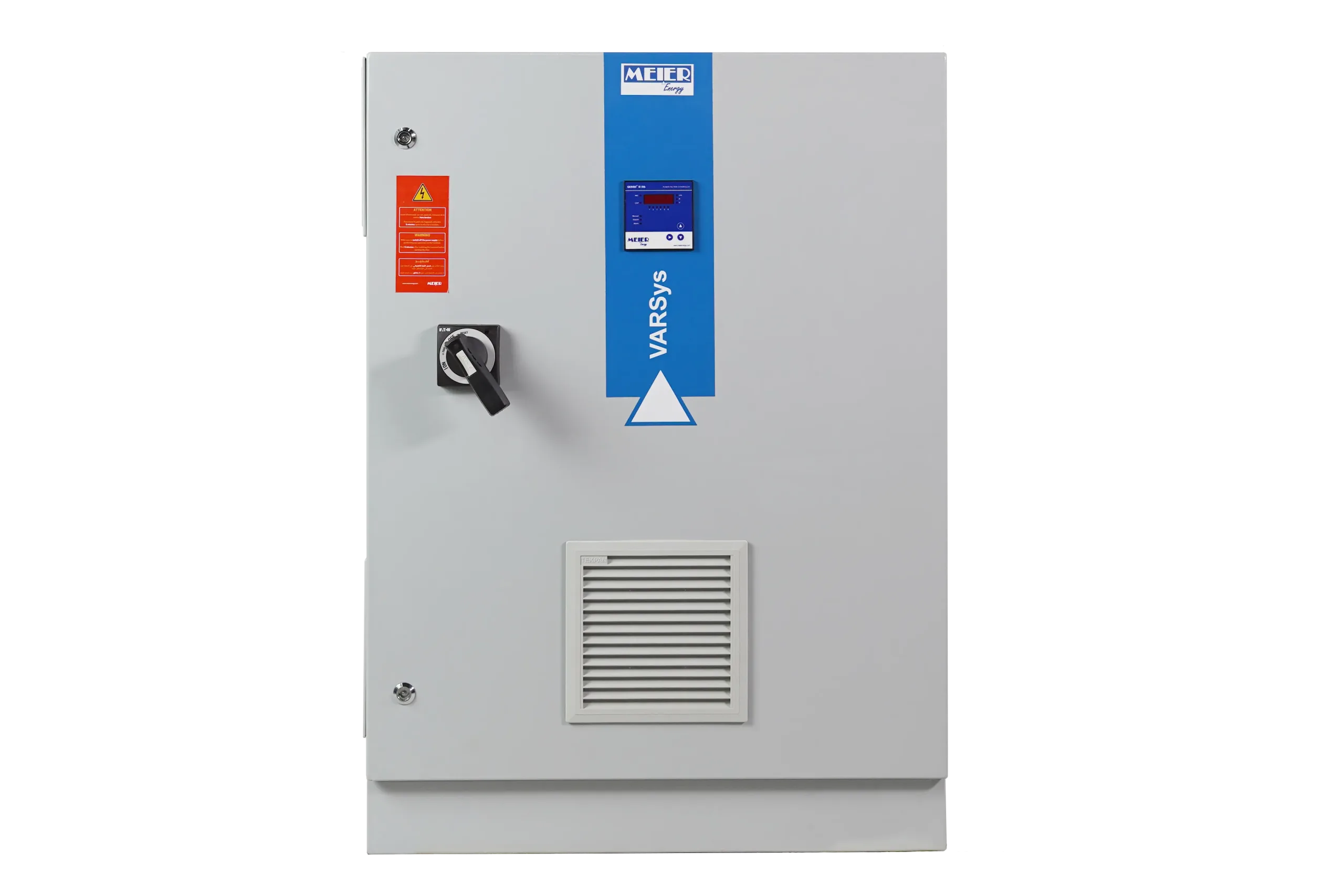

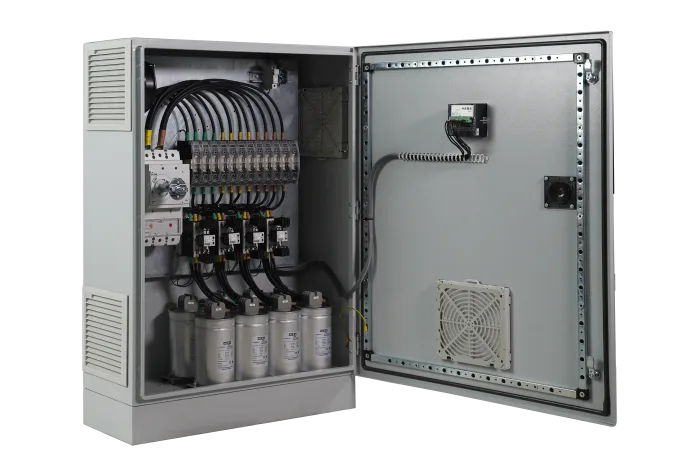

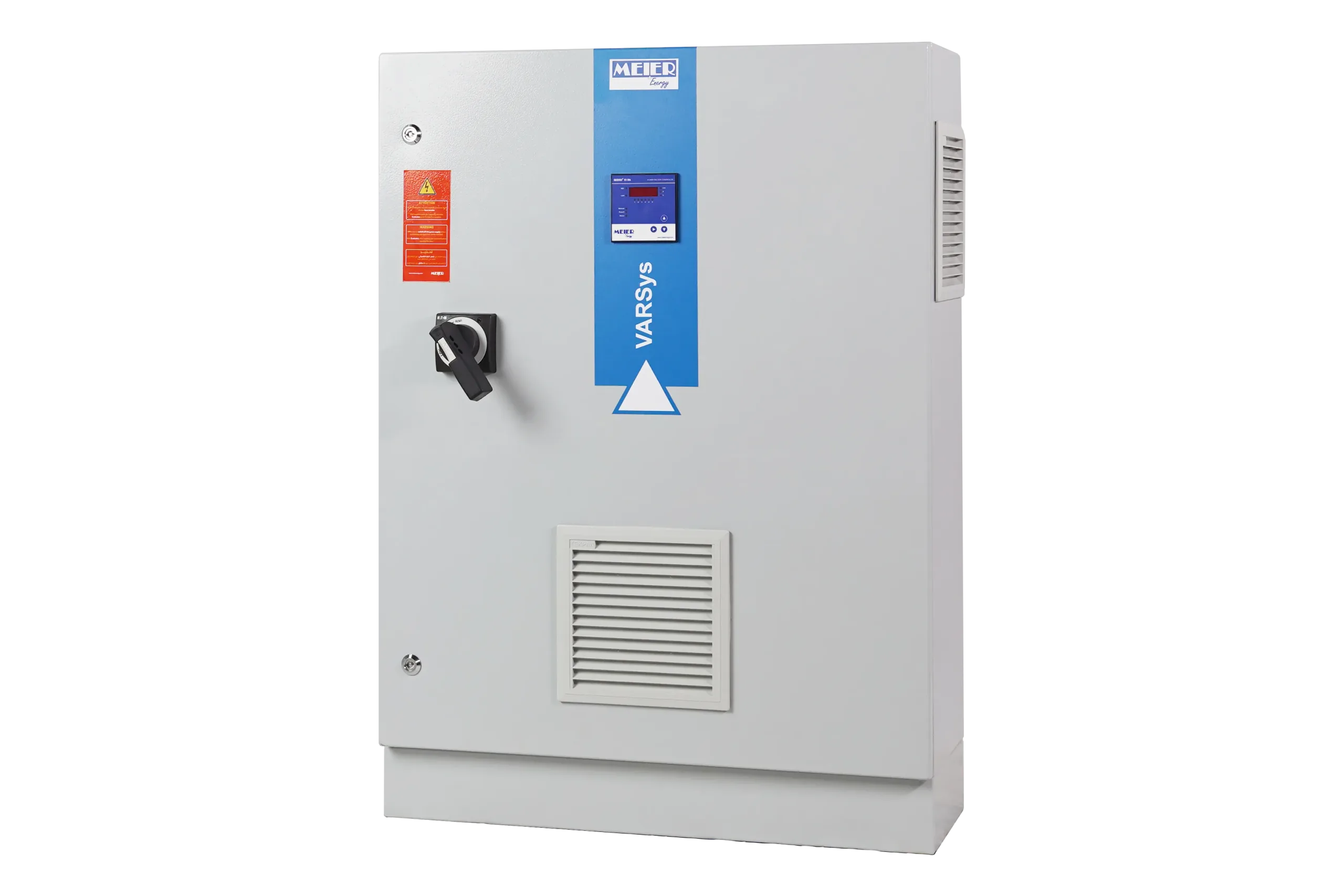

VARSYS® RANGE H - FROM 100KVAR UP TO 350KVAR
Automatic Compensation Panels

Automatic Compensation Panels

  • Automatic Compensation
  • 415 V / 50 Hz
  • Top or Bottom Entry
  • Moderately polluted network 3
  • No Risk of Resonance
Standards:
  • IEC 61921
  • IEC 61439-1/2
Certifications

Description

Environment

  • Installation: Indoor

  • Ambient Temperature: -5°C to 45°C

  • Average Daily Temperature: Maximum +35°C

  • Humidity: Up to 95%

  • Maximum Altitude: 2000m

GENERAL CHARACTERISTICS

Electrical Specifications
Nominal voltage 415 V – 50 Hz
Capacity Tolerance -5%, +5%
Connection Type Three-phase
Power Loss < 2.5 W/kVAr
Maximum Allowable Current
(with thermal protection included)		 1.43 In
Maximum Allowable Voltage 1.27 x Un, 8h every 24h
Overload Protection CHL Protection Alarm (Capacitor Harmonic Load)
Isolation Voltage 690 V
Shock Withstand Voltage 8 kV
Box
Degree of protection IP42
Color RAL 7035
Degree of Mechanical Resistance IK10
Varmetric Relay
Genius® Genius® B106 (other options available)
Head Protection
With Main Switch Rotary Handle Switch-Disconnector
The compensation bank must be protected upstream by a circuit breaker
With Circuit Breaker Molded Case Circuit Breaker with Rotary Handle
Steps
Type of Capacitors VARCap® 480 V – 50 Hz
Maximum Overload: Up to 2.0 In
Maximum Inrush Current: ≤500 In
Operational Ambient Temperature: -40°C – +60°C
Overvoltage Protection for all 3 Phases
Discharge Resistance 50 V – 1 min
Contactors KMC Range, dedicated to capacitor switching
Step protection By gG-type fuse or by choice of Molded Case Circuit Breaker



Temperature Control
Temperature Control By Thermostat & by Genius® controller
Communication
ModBus RS485 (optional)
Installation
Auxiliary Power Supply 230 V AC – 50Hz
CT (Not included) >5 VA – secondary1 A or 5 A
To be installed upstream of the load and the compensation bank
Emergency Group Contact Input provided for the source changeover contact (optional)
Alarm Contact Available for remote alarm reporting
Dimensions
Power up to 200kVAR Panel C4 – HxLxP : 1100 X 800 X 320
Power up to 350kVAR Panel C5 – HxLxP : 1200 X 900 X 420

Environment

  • Installation: Indoor

  • Ambient Temperature: -5°C to 45°C

  • Average Daily Temperature: Maximum +35°C

  • Humidity: Up to 95%

  • Maximum Altitude: 2000m

GENERAL CHARACTERISTICS

Electrical Specifications
Nominal Voltage: 415 V – 50 Hz
Capacity Tolerance: -5%, +5%
Connection Type: Three-phase
Power Loss < 2.5 W/kVAr
Maximum Allowable Current (with thermal protection included) 1.43 In
Maximum Allowable Voltage 1.27 x Un, 8h every 24h
Overload Protection CHL Protection Alarm (Capacitor Harmonic Load)
Isolation Voltage 690 V
Shock Withstand Voltage 8 kV
Box
Degree of protection IP42
Color RAL 7035
Degree of Mechanical Resistance IK10
Varmetric Relay
Genius® Genius® B106 (other options available)
Head Protection
With Main Switch Rotary Handle Switch-Disconnector
The compensation bank must be protected upstream by a circuit breaker
With Circuit Breaker Molded Case Circuit Breaker with Rotary Handle
Steps
Type of Capacitors VARCap® 480 V – 50 Hz
Maximum Overload: Up to 2.0 In
Maximum Inrush Current: ≤500 In
Operational Ambient Temperature: -40°C – +60°C
Overvoltage Protection for all 3 Phases
Discharge Resistance 50 V – 1 min
Contactors KMC Range, dedicated to capacitor switching
Step Protection By gG-type fuse or by choice of Molded Case Circuit Breaker



Temperature Control
Temperature Control By Thermostat by Genius® controller
Communication
ModBus RS485 (optional)
Installation
Auxiliary Power Supply 230 V AC – 50Hz
CT (Not included) >5 VA – secondary1 A or 5 A
To be installed upstream of the load and the compensation bank
Emergency Group Contact Input provided for the source changeover contact (optional)
Alarm Contact Available for remote alarm reporting
Dimensions
Power up to 200kVAR Panel C4 – HxLxP : 1100 X 800 X 320
Power up to 350kVAR Panel C5 – HxLxP : 1200 X 900 X 420
